12V Linear Actuator, 1000N, 4in Stroke, IP54 Bracket

12V Linear Actuator, 1000N, 4in Stroke, IP54 Bracket

Product form
Item number: 11378872648007

12V linear actuator delivers fast, controlled lift motion for reliable height adjustment in desks, recliners, TV lifts, and window openers.... Read more

Currently unavailable

€84,99  €76,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Input voltageDC 12V
    Max load / thrust1000N (225 lb)
    Stroke length4 in / 101.6 mm
    Travel speed0.6 in/s (15 mm/s)
    Extended length12 in / 304.8 mm
    Retracted length8 in / 203.2 mm
    Product dimensions8.5 x 3 x 1.6 in (216 x 75 x 40 mm)
    Net weight2.1 lb (0.973 kg)
    Main materialAluminum alloy
    IP ratingIP54
    Current draw5 A
    Duty cycle25%
    No-load noise< 50 dB

    Description

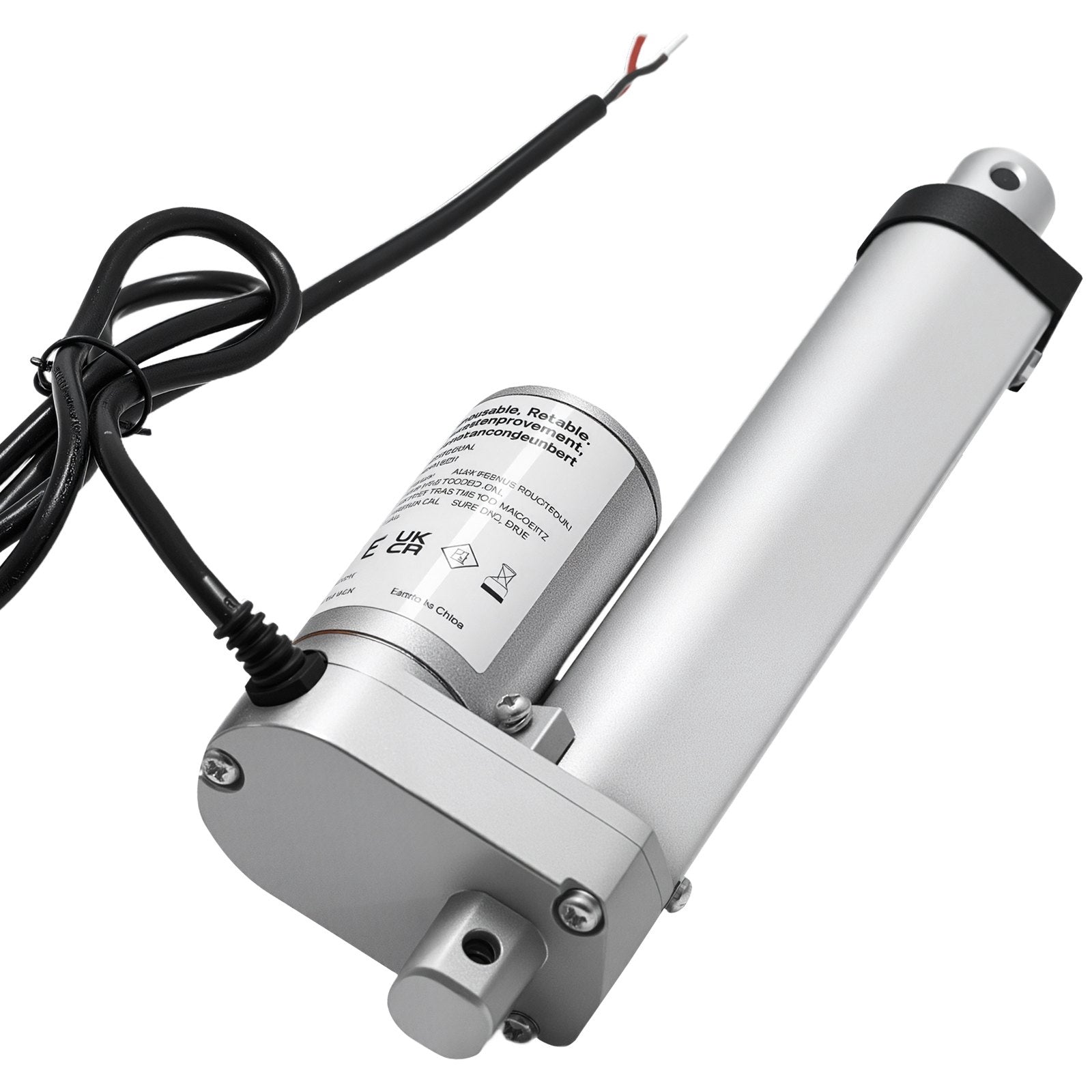

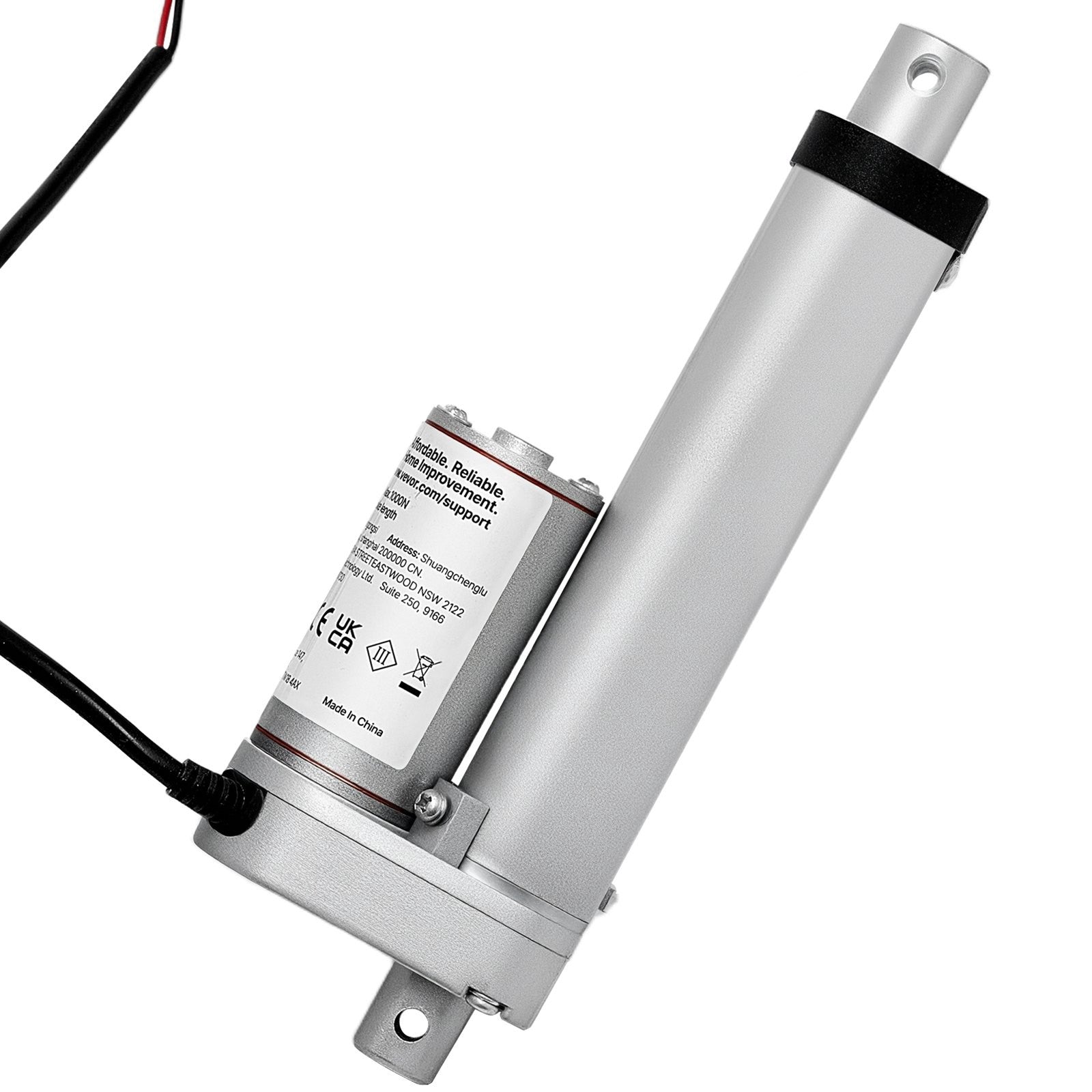

    12V linear actuator delivers fast, controlled lift motion for reliable height adjustment in desks, recliners, TV lifts, and window openers. With a 4 in / 101.6 mm stroke and 15 mm/s travel speed, it’s built for frequent cycling while maintaining smooth, steady thrust up to 1000N (225 lb). A durable aluminum alloy housing and IP54 protection help support long indoor service life, and the included mounting bracket simplifies installation.

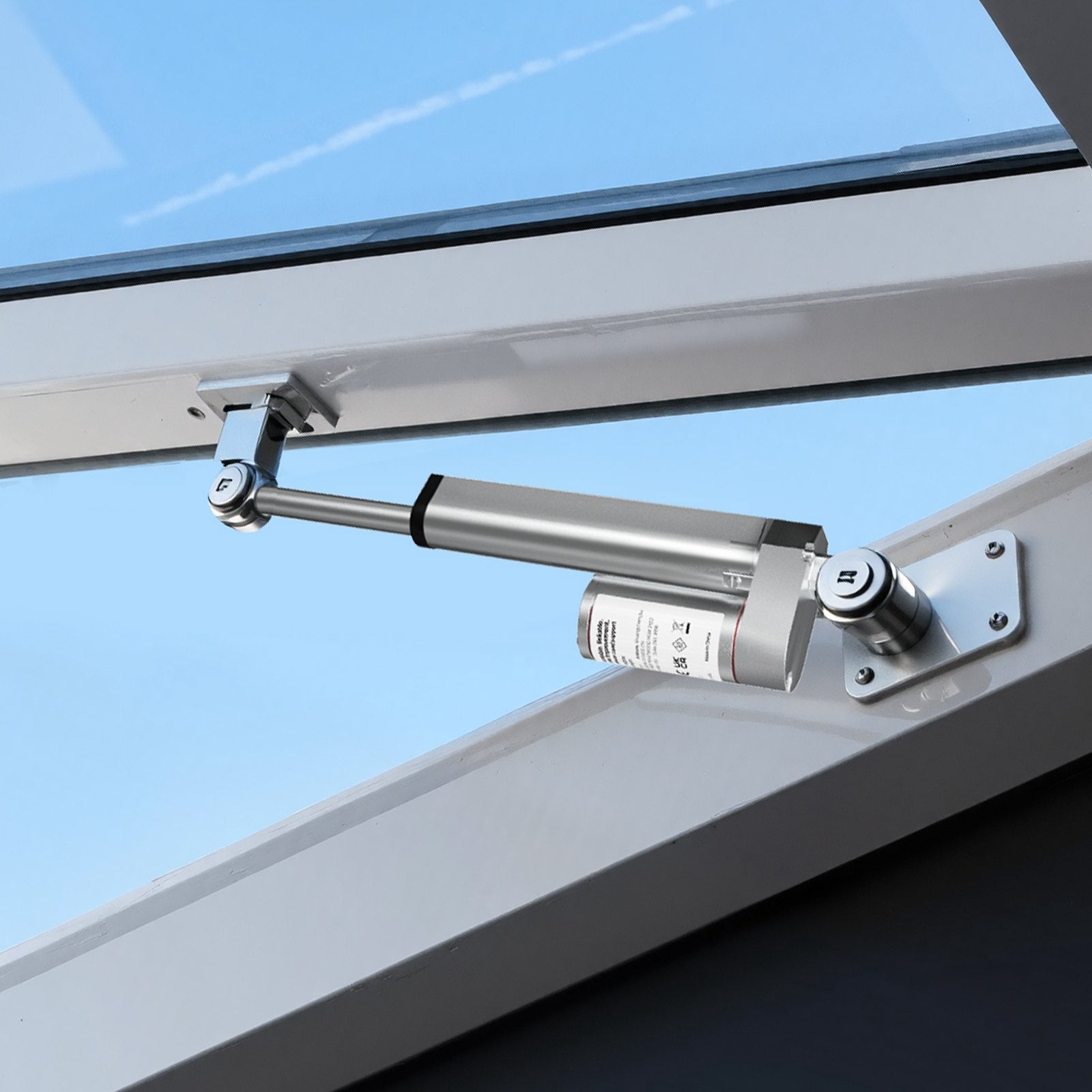

    Upgrade manual adjustments to smooth, repeatable automation with a compact actuator designed for consistent performance and clean installation. The balanced combination of travel speed, thrust, and low-noise operation makes it a practical choice for height-adjustable furniture, lifting tables, electric wheelchair accessories, and window/door mechanisms. Built with an aluminum alloy body and an IP54 protection rating, it’s suited to everyday indoor projects where reliability matters. Grab yours today and get precise linear motion without overcomplicating your build.

    Specifications
    • Delivers 1000N (225 lb) thrust for steady linear motion in furniture and light automation projects
    • Moves at 15 mm/s (0.6 in/s) to speed up frequent lift and height-adjust tasks
    • Runs quietly under 50 dB (no-load) for bedrooms, offices, labs, and shared spaces

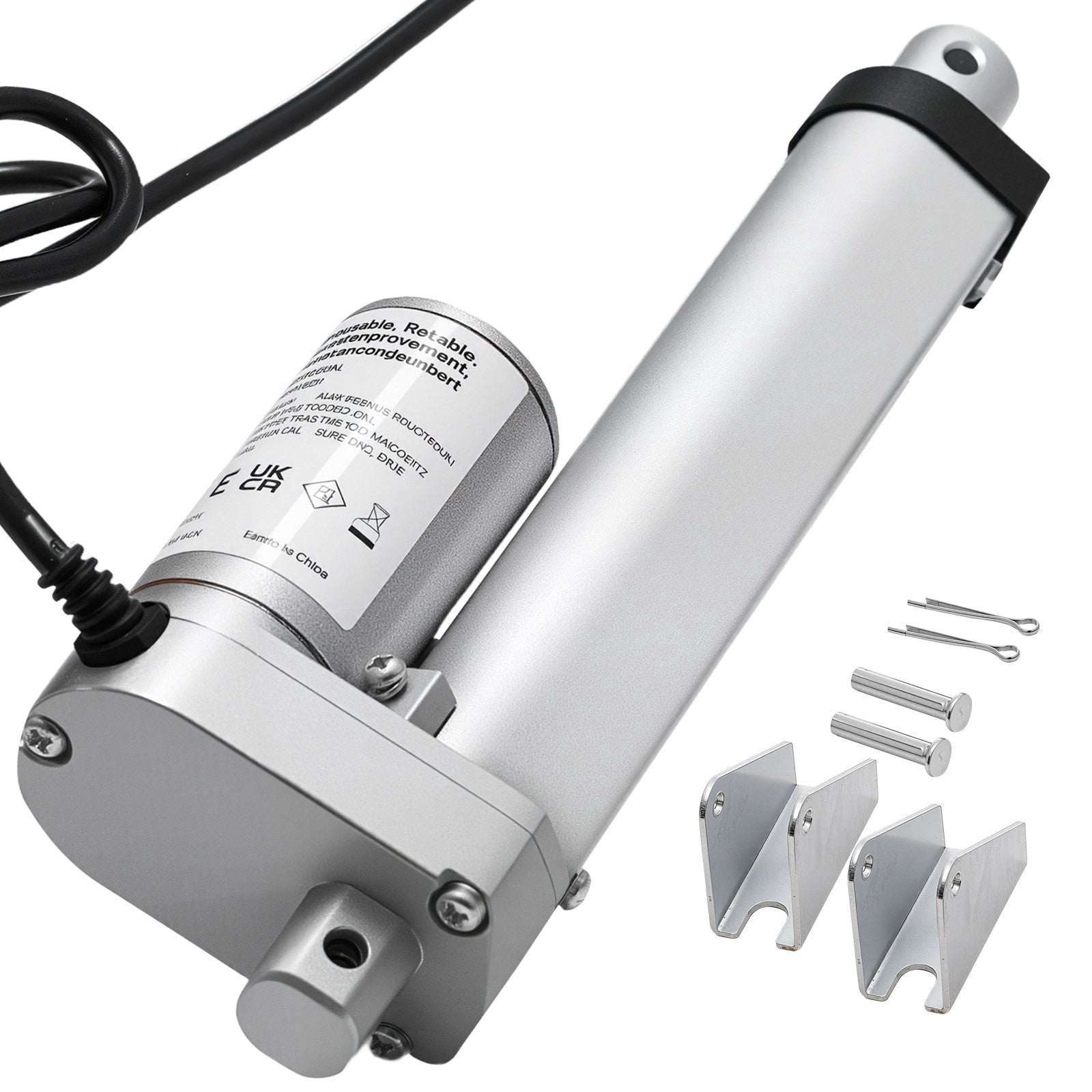

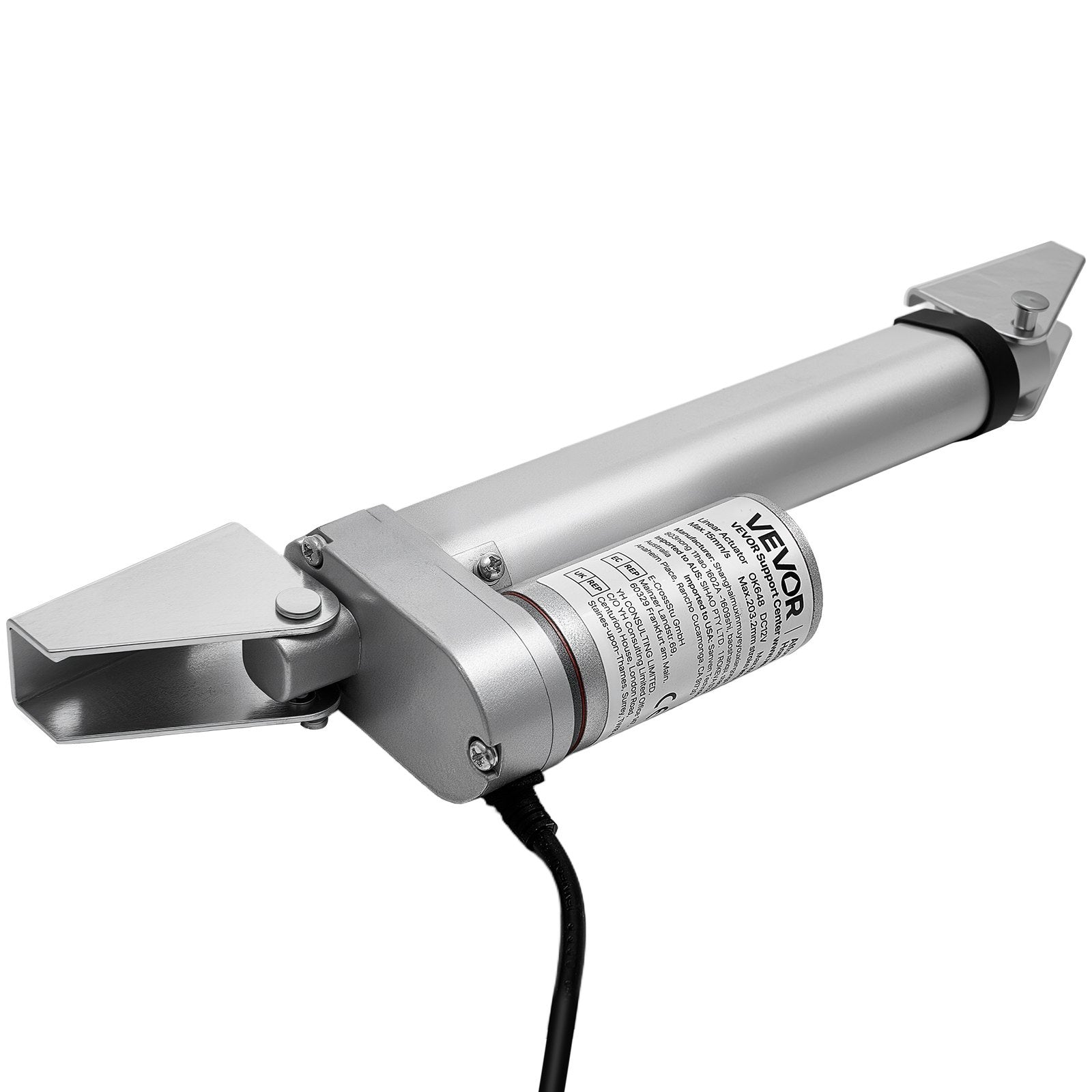

    • Includes mounting bracket to simplify setup for lift desks, recliners, and openers
    • Protects with IP54-rated housing for dependable indoor use; keep water away from the motor
