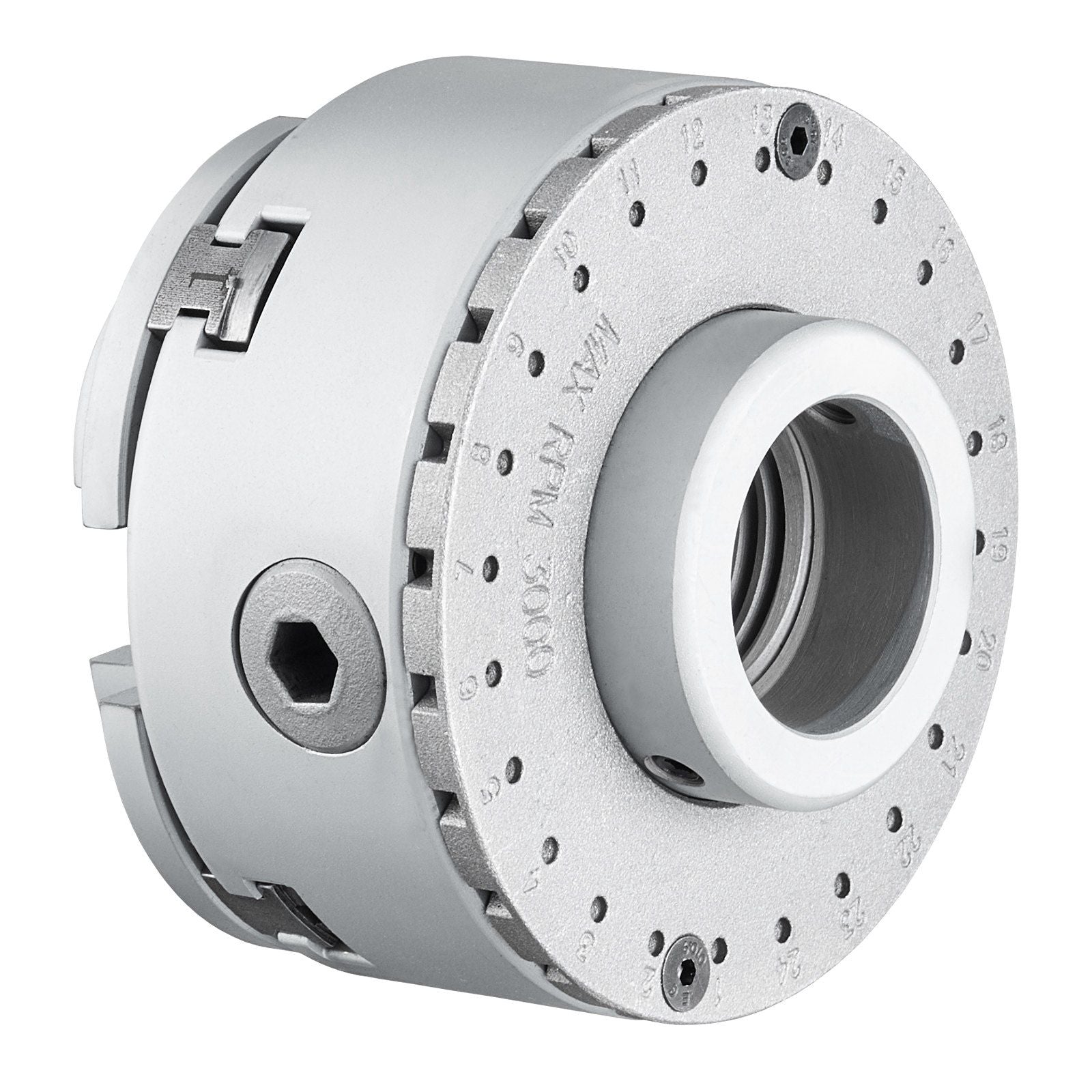

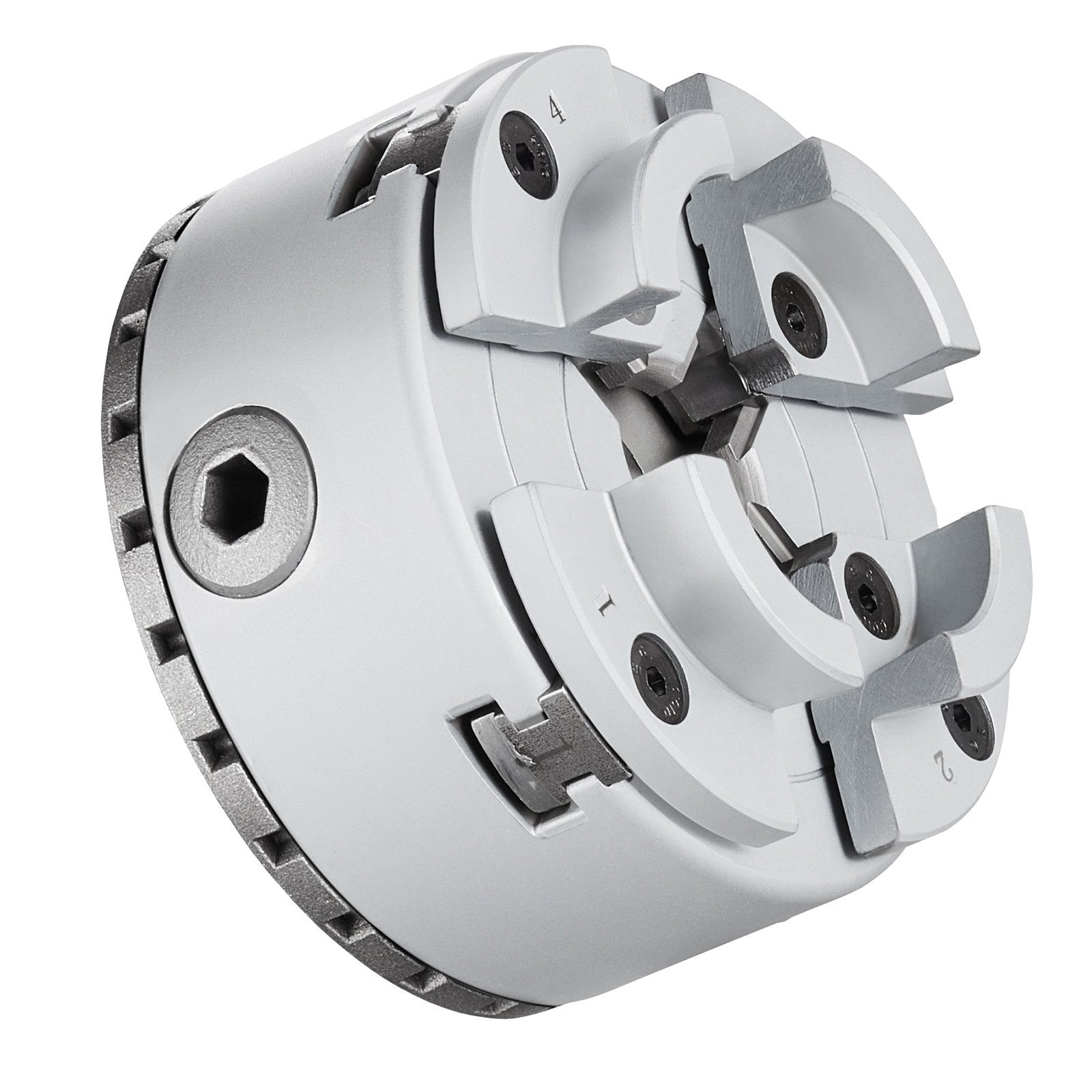

4-Jaw Lathe Chuck, 96mm, Self-Centering, 5 Jaw Sets
4-Jaw Lathe Chuck, 96mm, Self-Centering, 5 Jaw Sets
Item number: 11368873296199
Self-centering lathe chuck delivers repeatable, secure gripping for precision turning with fast jaw changes for different workpieces. This 4-jaw chuck... Read more
€288,99 €261,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Fits a wide clamping range | 32–70 mm internal and 45–86 mm external for small to larger workpieces |
|---|---|
| Chuck type | 4-jaw self-centering |

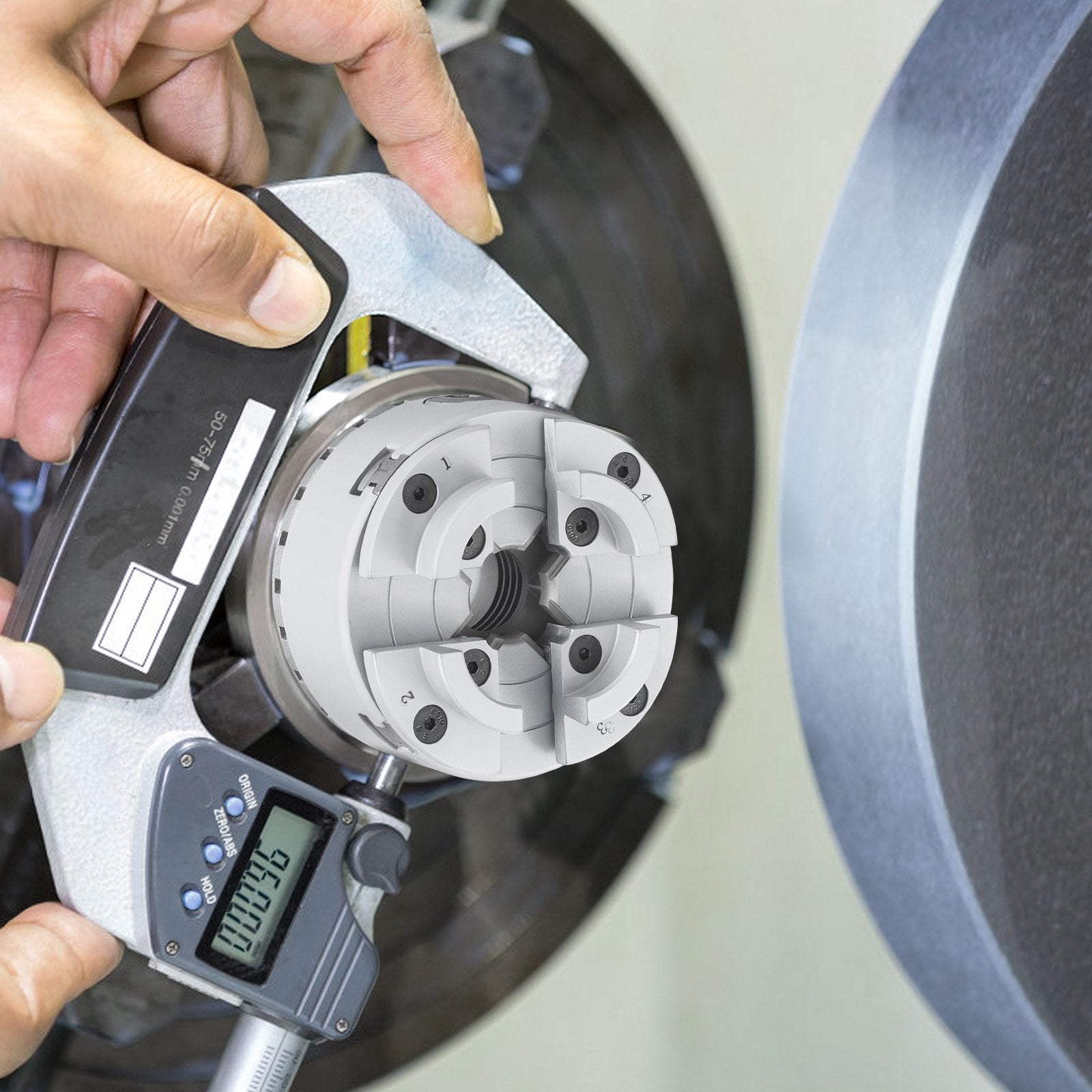

| Outer diameter | 96 mm (3.75 in) |
| Dimensions | Ø96 × 80 mm |
| Material | 45# steel, quenched & tempered |
| Finish | chrome-plated natural color; surface roughness ≤Ra1.6 |
| Clamping range (inner) | 32–70 mm (1.26–2.75 in) |
| Support range (outer) | 45–86 mm (1.77–3.4 in) |
| Outer diameter runout | ≤0.15 mm |
| Test ring end face runout | ≤0.15 mm |
| Test bar radial runout | ≤0.40 mm at 50 mm distance |
| Internal thread | M33 × 3.5 |
| Net weight | 4.7 kg (10.3 lb) |

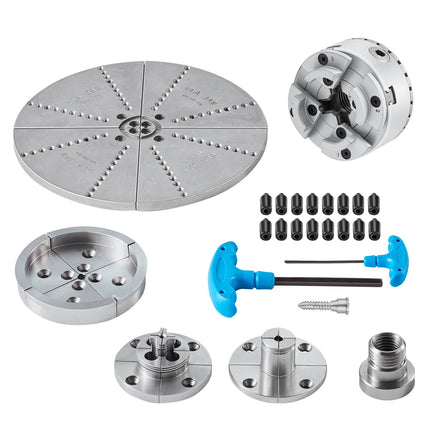

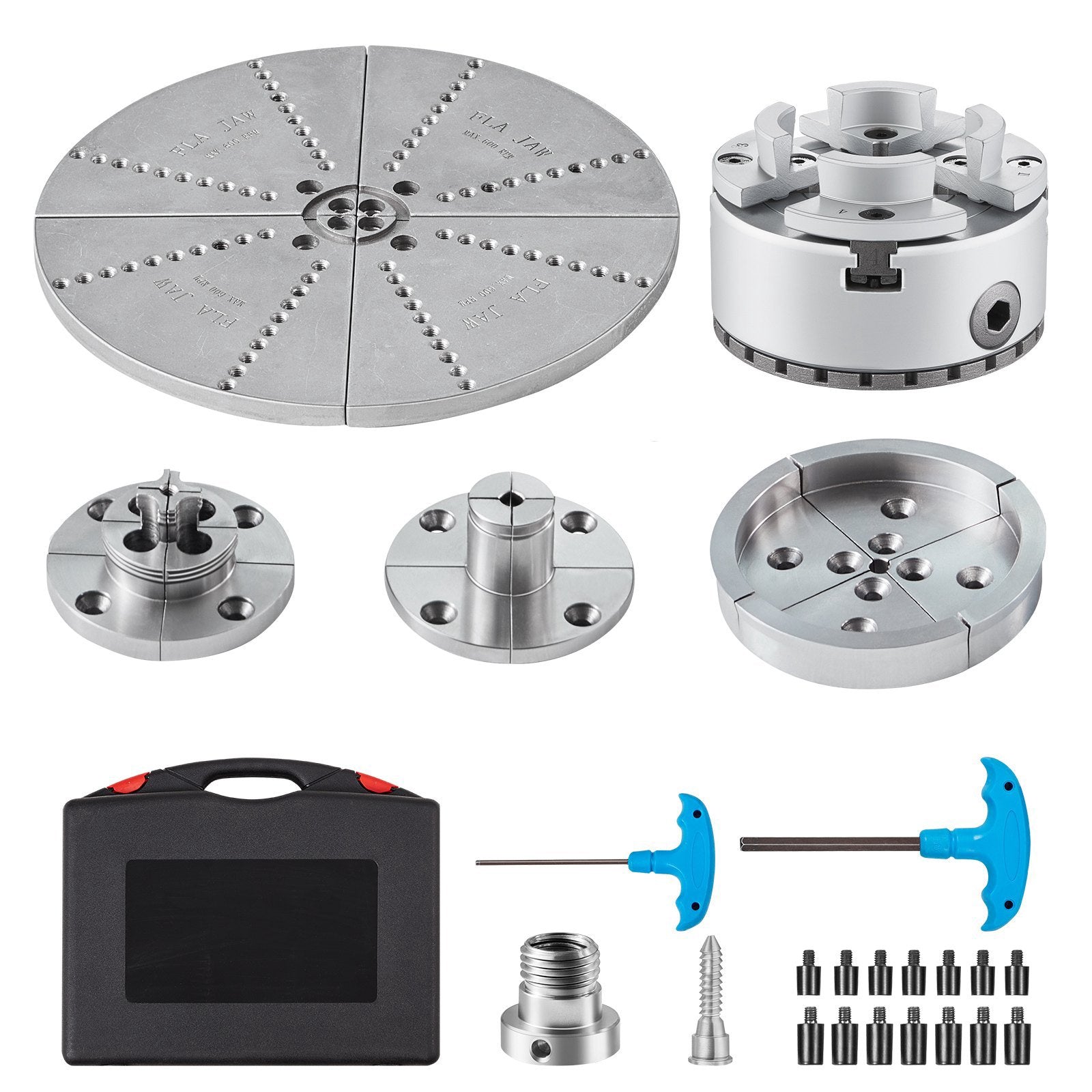

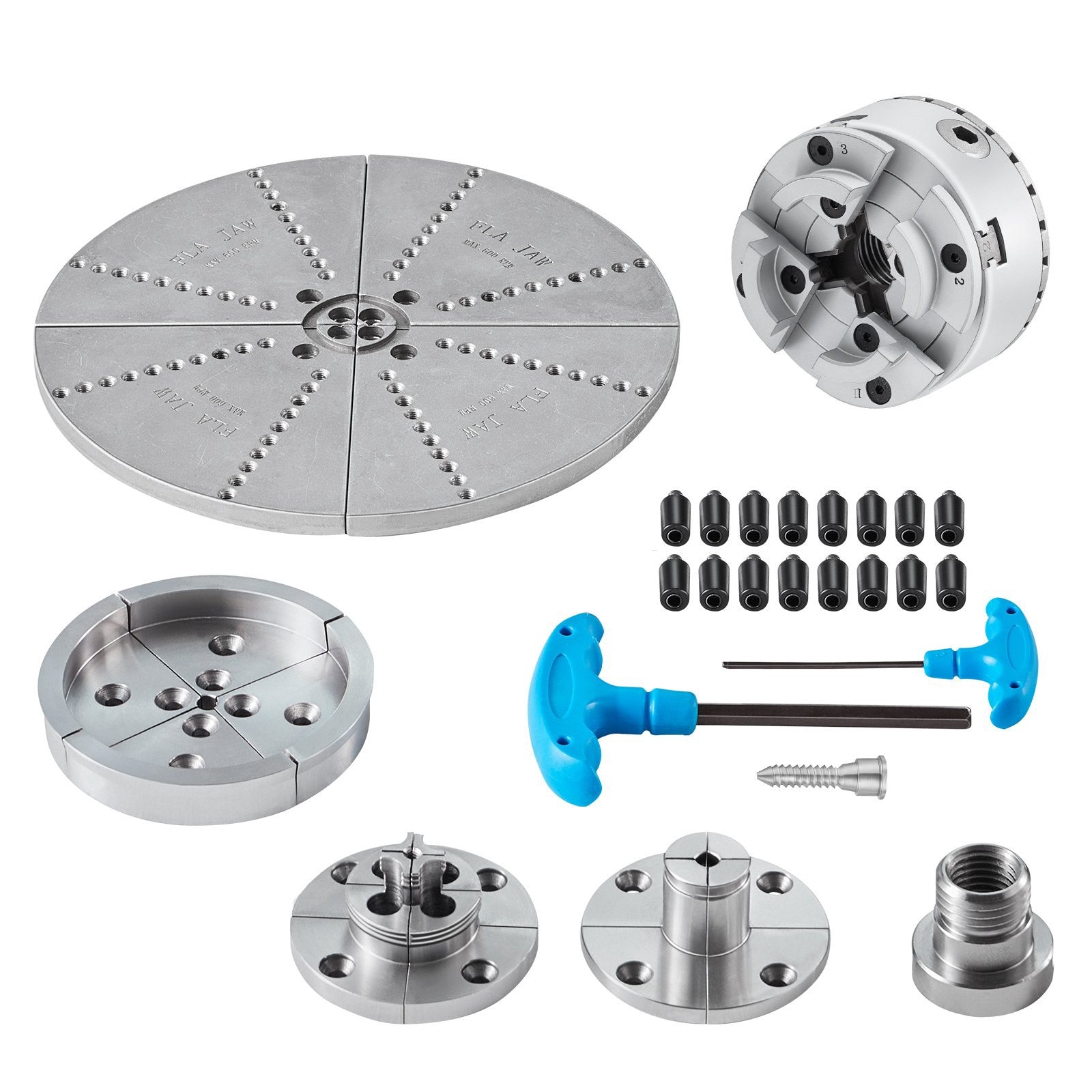

| In the box | chuck, 5 jaw sets, T-handle wrench, installation tools |
