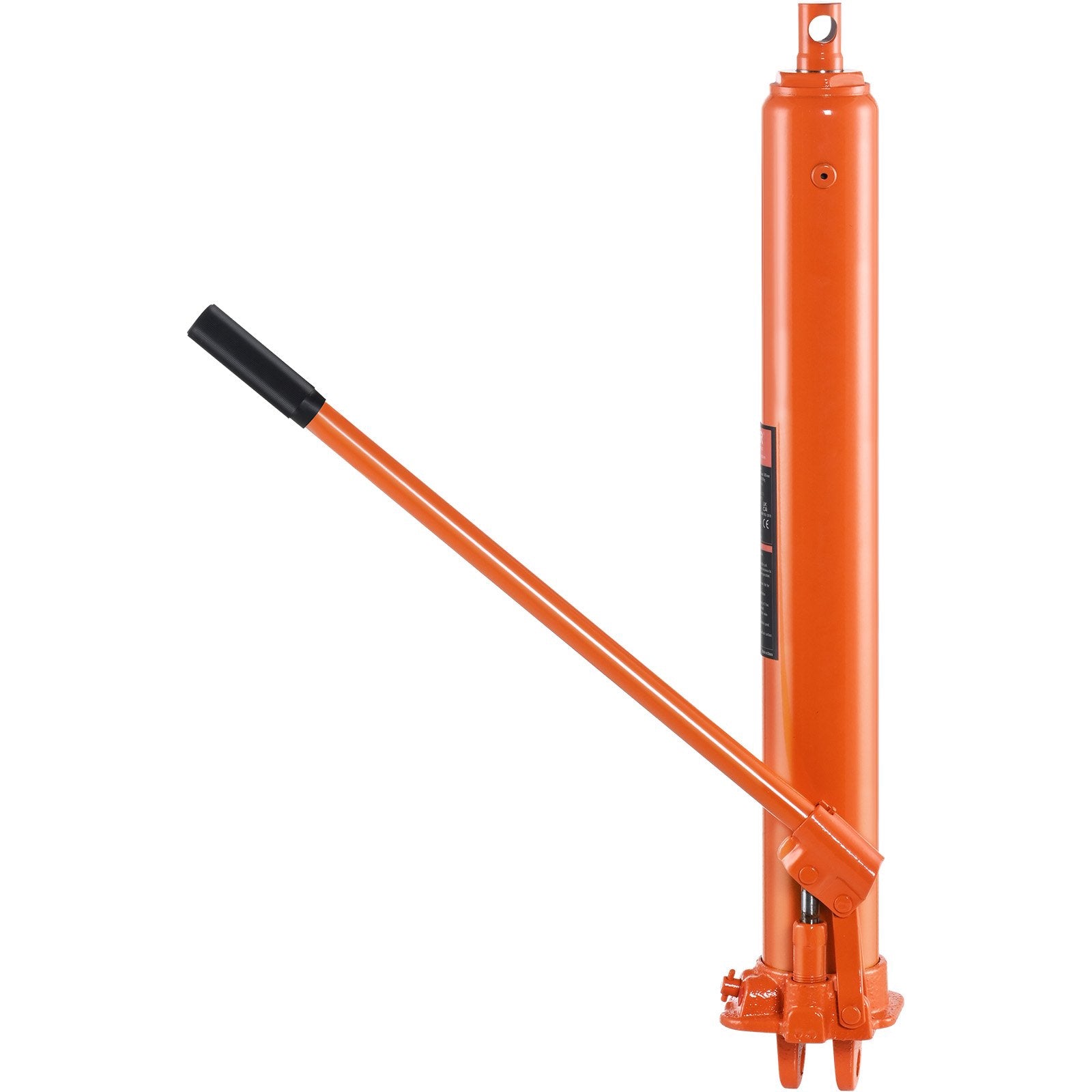

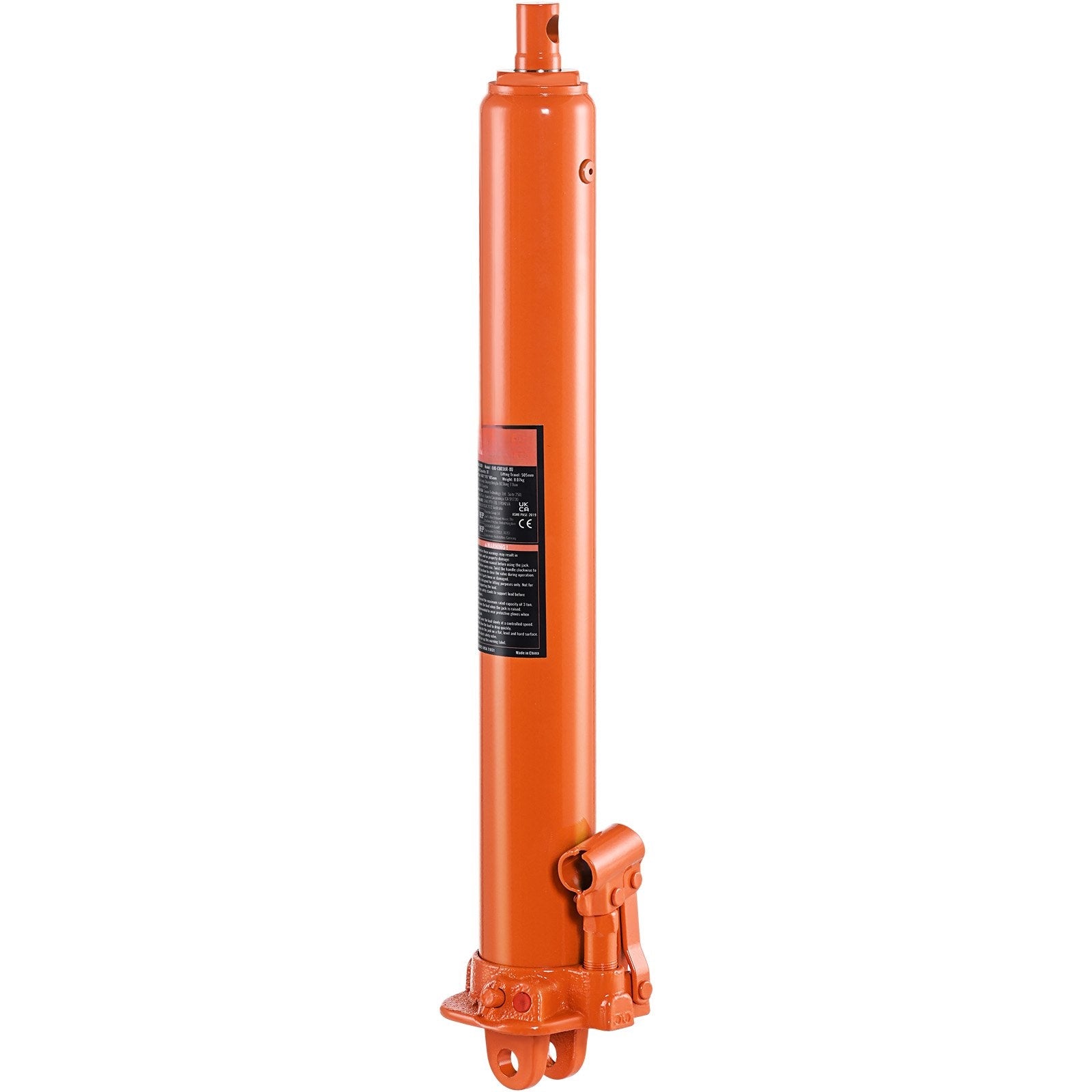

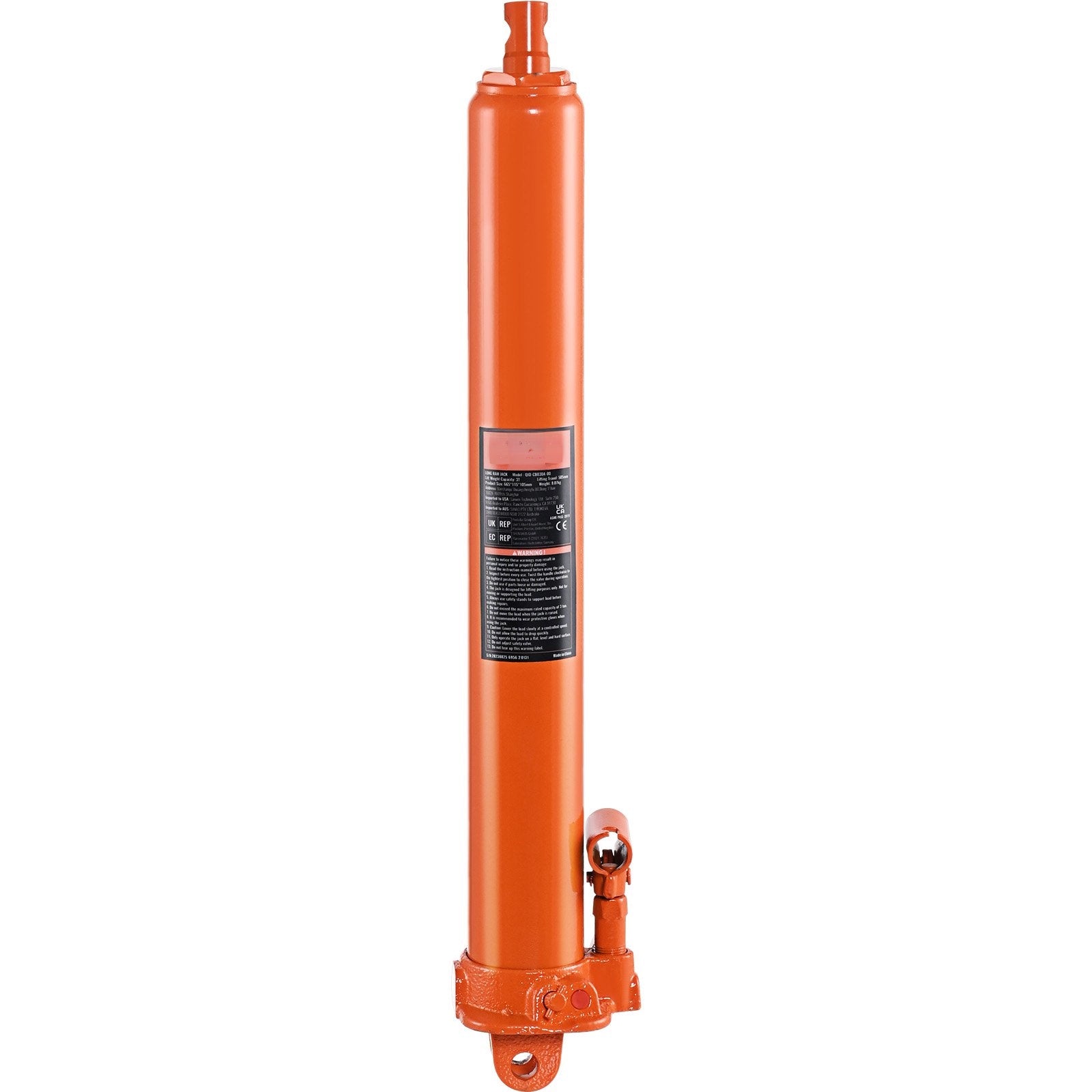

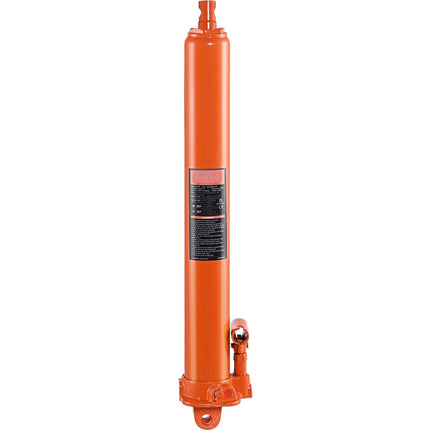

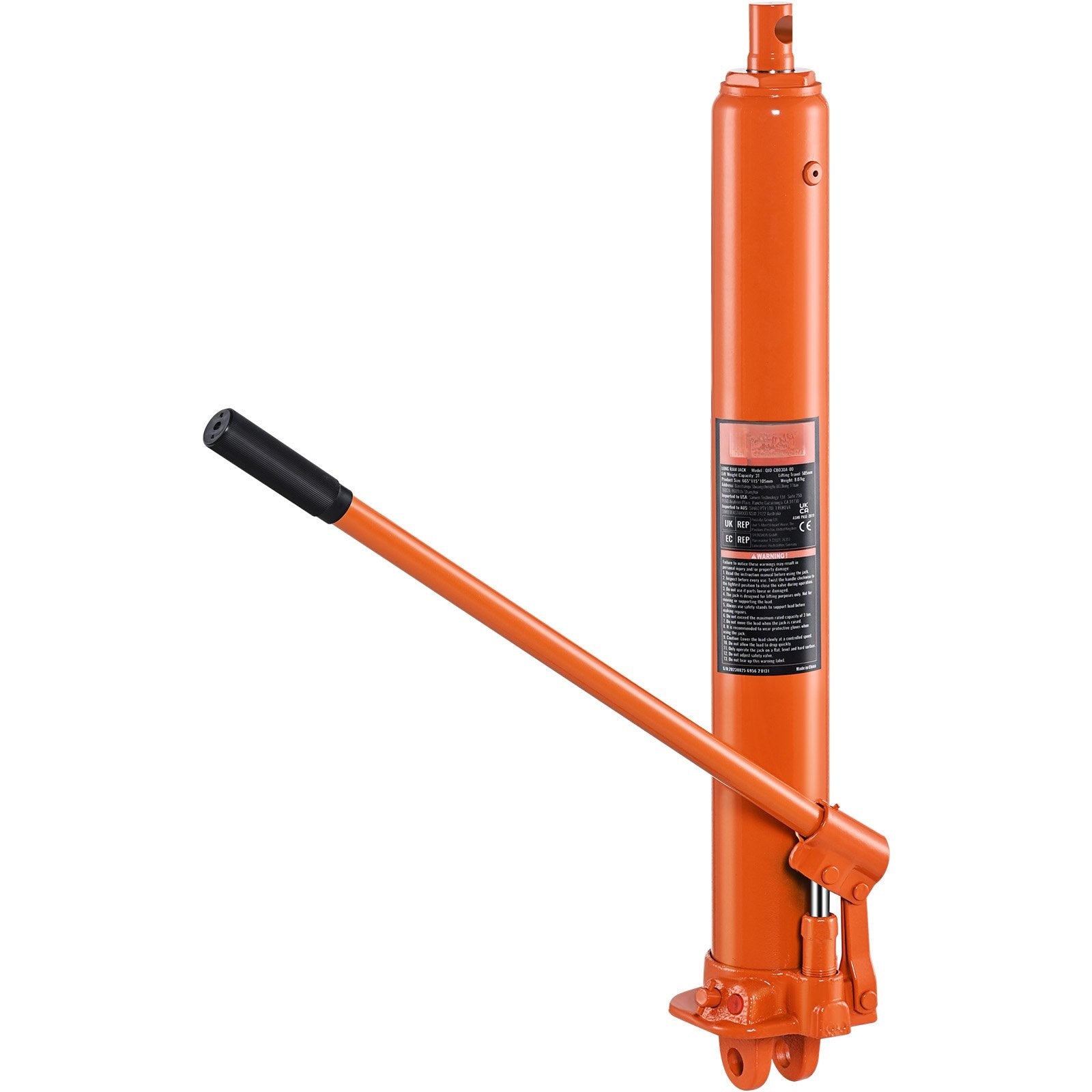

Hydraulic Long Ram Jack, 3 Ton Engine Hoist Cylinder

Hydraulic Long Ram Jack, 3 Ton Engine Hoist Cylinder

Product form
Item number: 11369118597447

Hydraulic long ram jack delivers controlled, high-lift power for engine hoists and shop cranes, helping you raise heavy loads with... Read more

Currently unavailable

€113,99  €102,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Load capacity3 T / 6600 lb
    Height range26.2–46 in / 665–1170 mm
    Lifting stroke19.9 in / 505 mm
    Piston rod outer diameter1.1 in / 28 mm
    Material#45 steel; hard chrome-plated surface
    Product dimensions26.2 × 4.5 × 4.1 in / 665 × 115 × 105 mm
    Net weight19.58 lb / 8.88 kg
    Base typeClevis mount

    Description

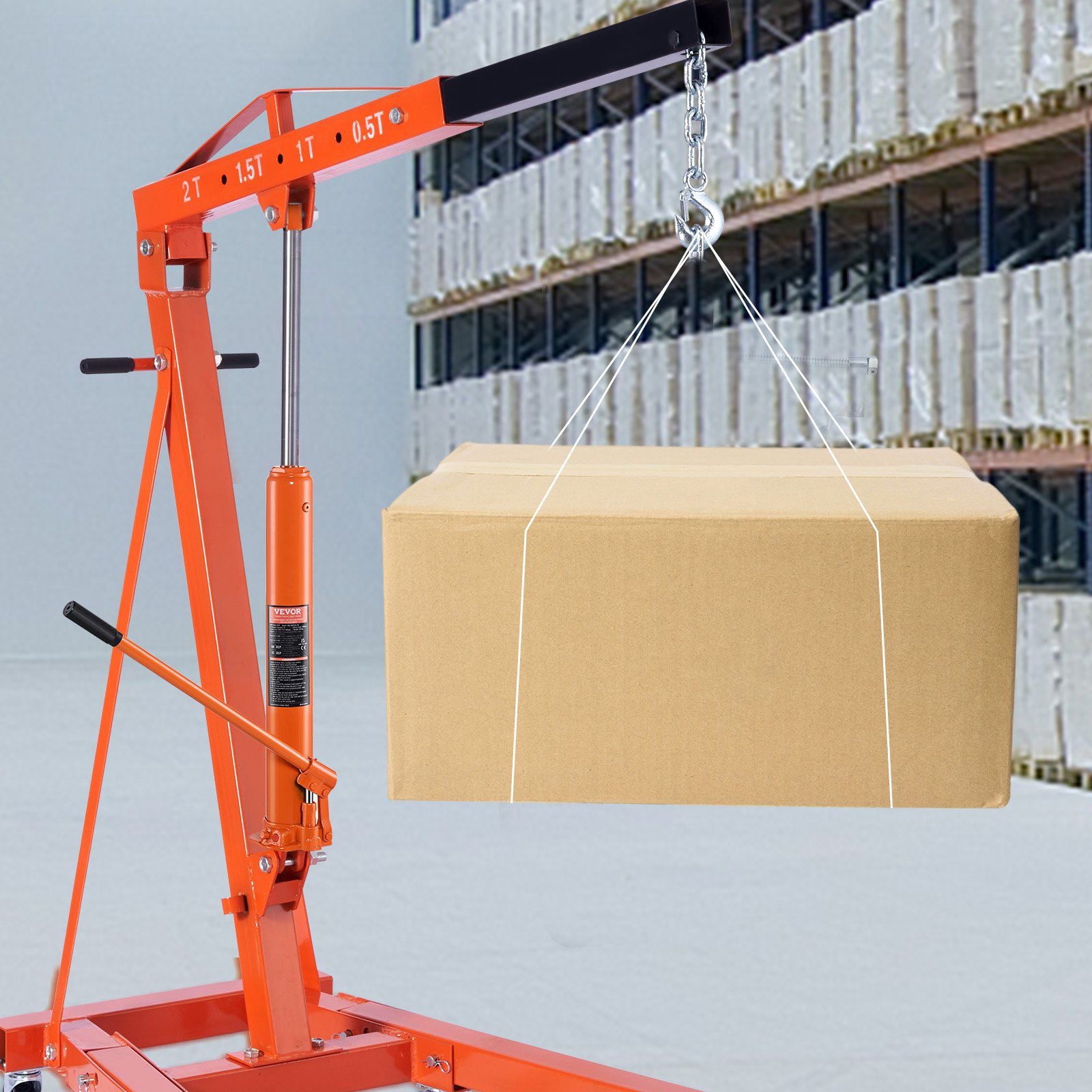

    Hydraulic long ram jack delivers controlled, high-lift power for engine hoists and shop cranes, helping you raise heavy loads with less effort and safer lowering. Built for workshop, garage, farm, and maintenance use, it combines a 3-ton capacity with an adjustable 26.2–46 in range and a slow-release function for better control. Durable steel construction and a hard chrome-plated finish support long-term performance under frequent lifting.

    When a standard bottle jack can’t reach the height or fit the hoist, this long ram hydraulic cylinder is made for the job—lifting engines, equipment, and shop loads with steadier control. The large-diameter cylinder helps lower oil pressure requirements to reduce wear, while the seal and plunger design helps resist oil bypass and slow descent. Ideal for routine maintenance or heavier one-off lifts, it’s a dependable upgrade for most hydraulic engine hoists and mechanical lift setups. Grab yours today.

    Specifications
    • Delivers 3-ton/6600 lb lifting power for engine lift hoists, garage cranes, and shop use
    • Adjusts from 26.2–46 in (665–1170 mm) with a 19.9 in/505 mm lifting stroke
    • Controls lowering via slow-release function to help reduce sudden drops during positioning
    • Protects with overload valve and oil bypass design for safer operation under heavy loads
    • Mounts securely using clevis base; rubber-grip handle improves comfort and leverage
