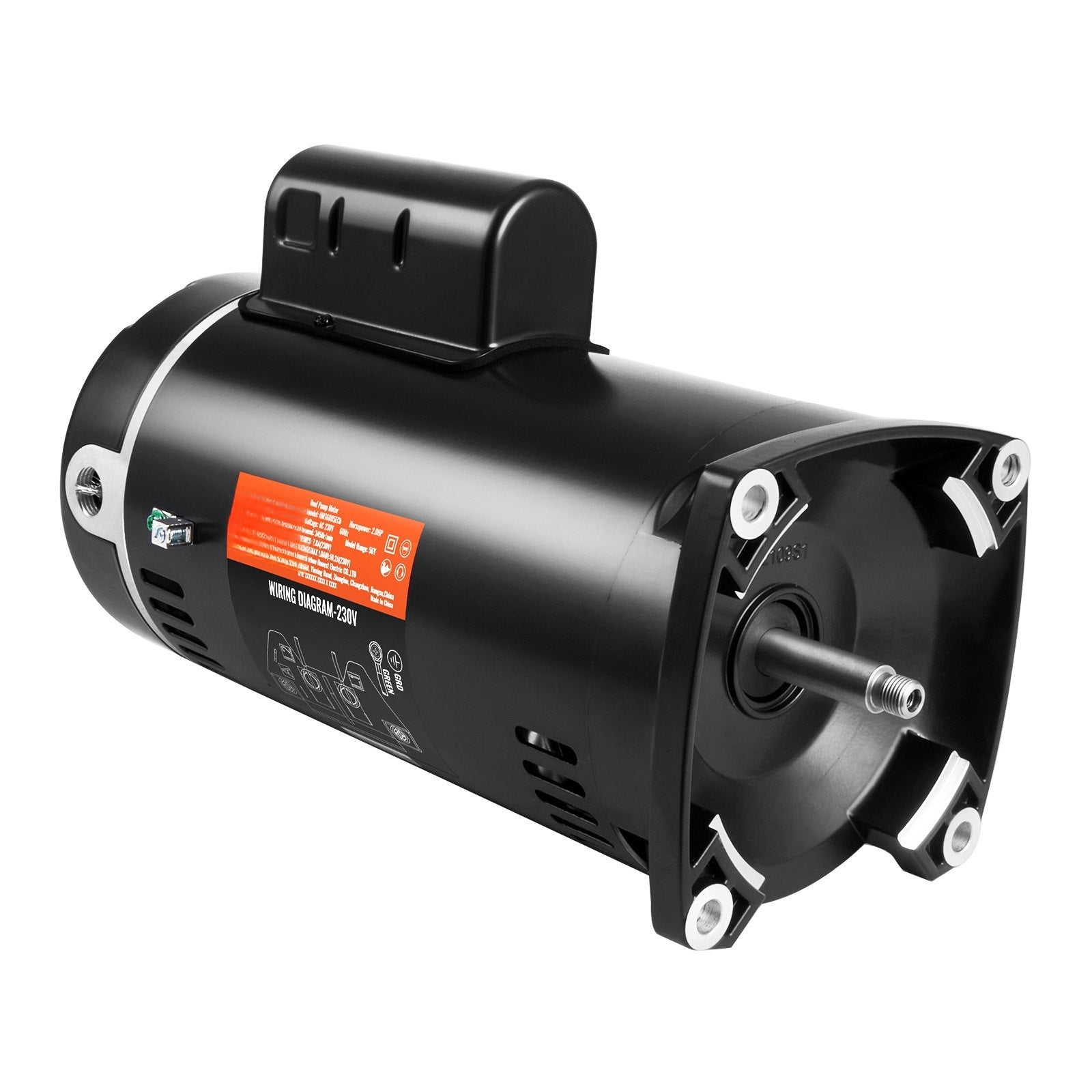

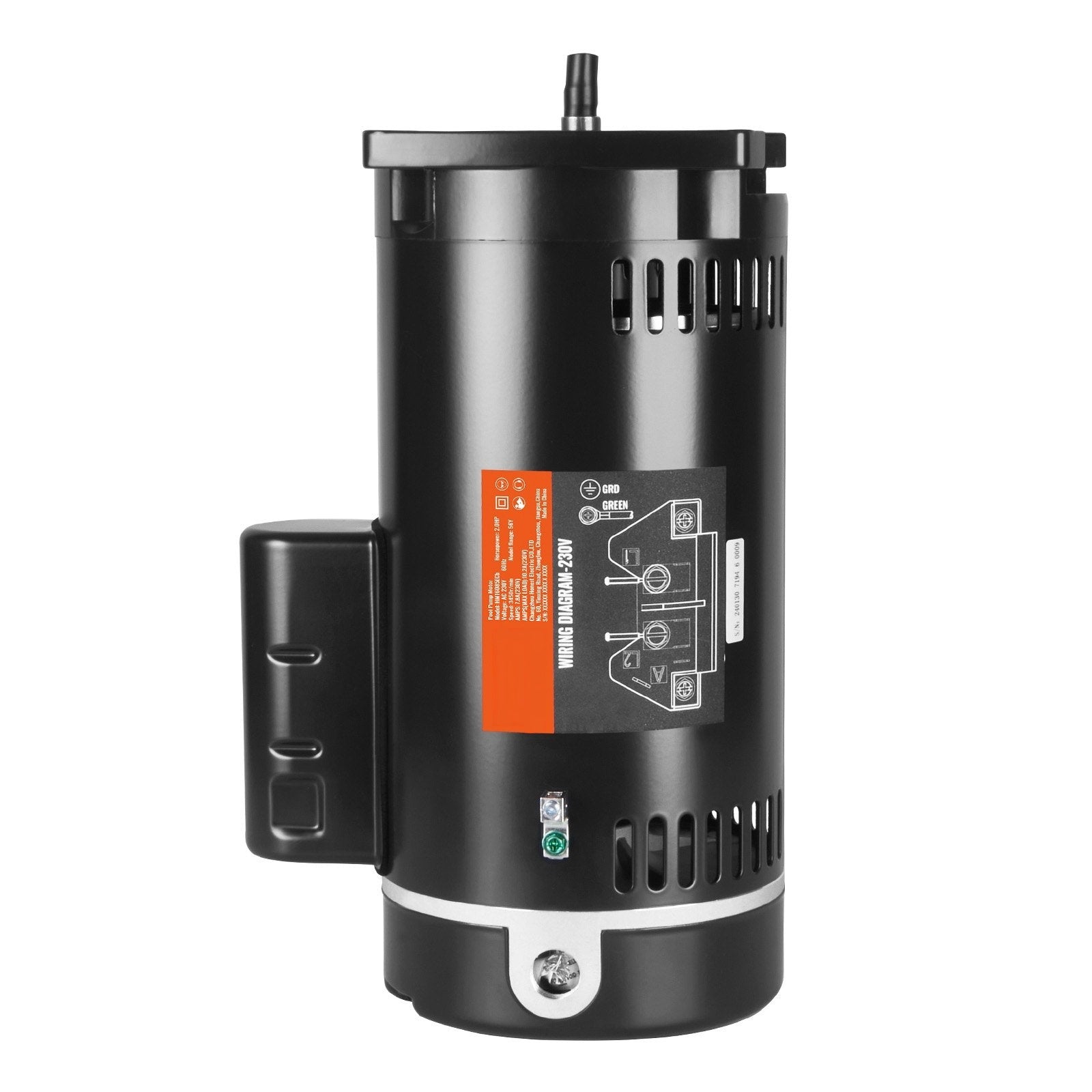

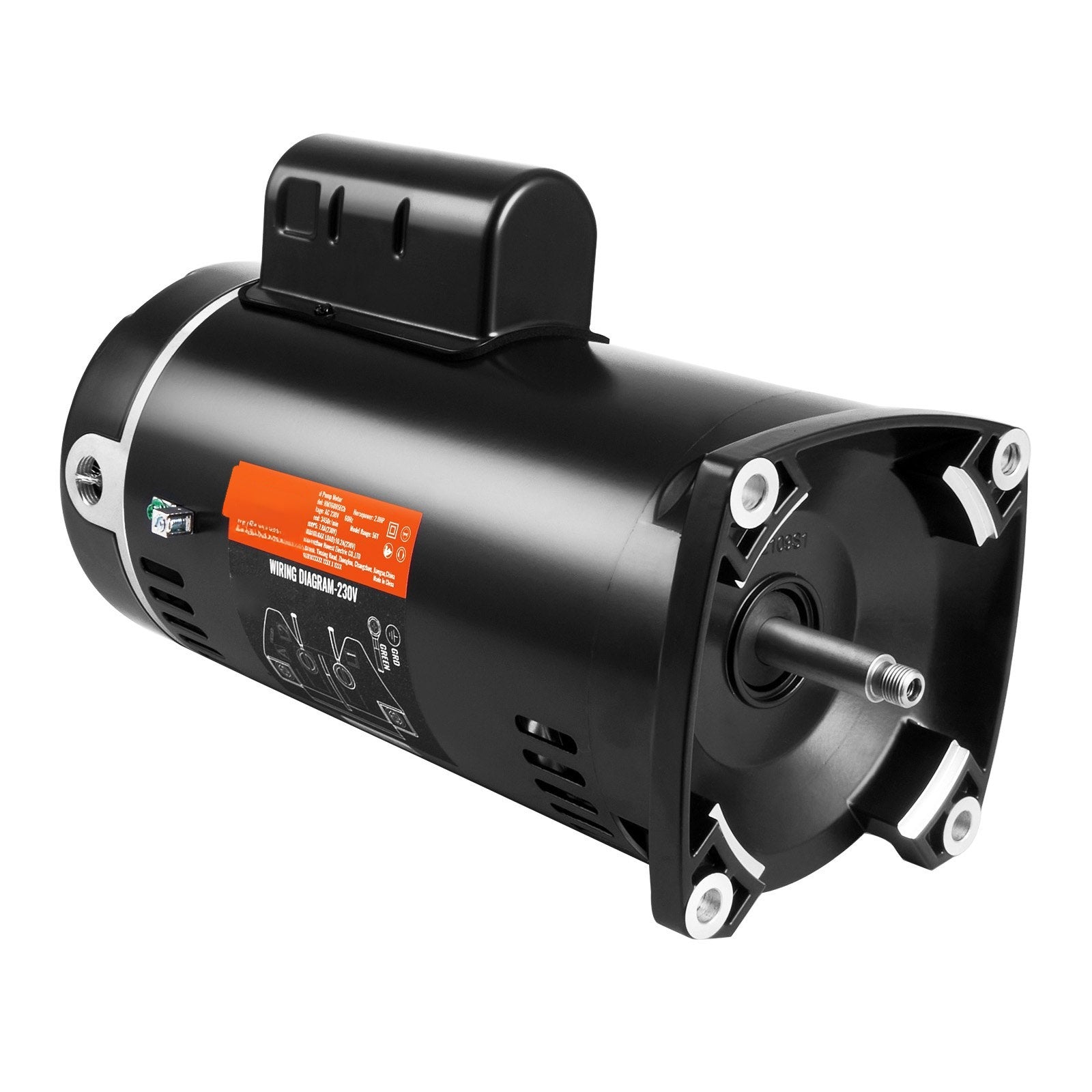

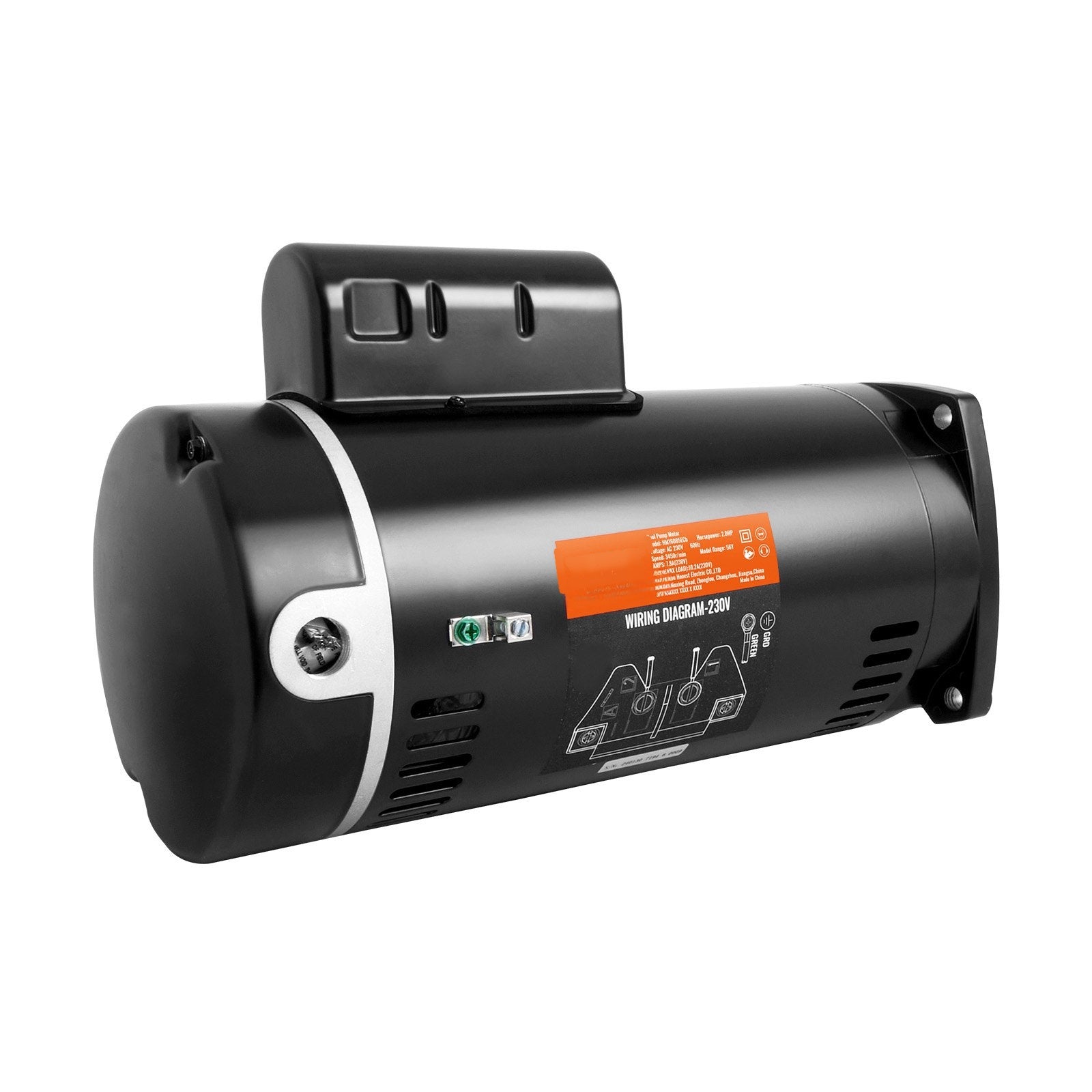

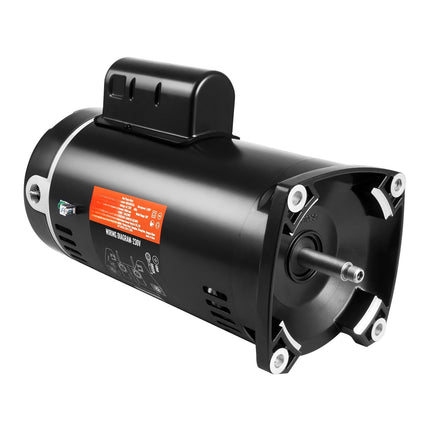

Pool Pump Motor 2 HP, 230V, 56Y Frame, 3450 RPM
Pool Pump Motor 2 HP, 230V, 56Y Frame, 3450 RPM
2 HP pool pump motor replacement restores strong circulation fast, helping keep your water clear and your system running smoothly.... Read more
€271,99 €246,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Motor power | 2 HP |
|---|---|
| Frame / flange | 56Y square flange |
| Voltage / frequency | AC 230V, 60Hz |
| Speed | 3450 RPM (no-load) |
| Current | 7.8A (rated), 10.2A (max load) |
| Service factor | 1.3 |
| Capacitor | 50μF / 250V |
| Rotation | CCW |
| Noise level | ≤ 70 dB |
| Shaft extension | 0.9 in |
| Output screw teeth | 1/2-20UNF-2A |
| Mounting thread size | 4-φ10.8mm |
| Dimensions | 14.4 x 6.5 x 9.1 in (366 x 165 x 230 mm) |
| Net weight | 34.4 lb (15.6 kg) |
