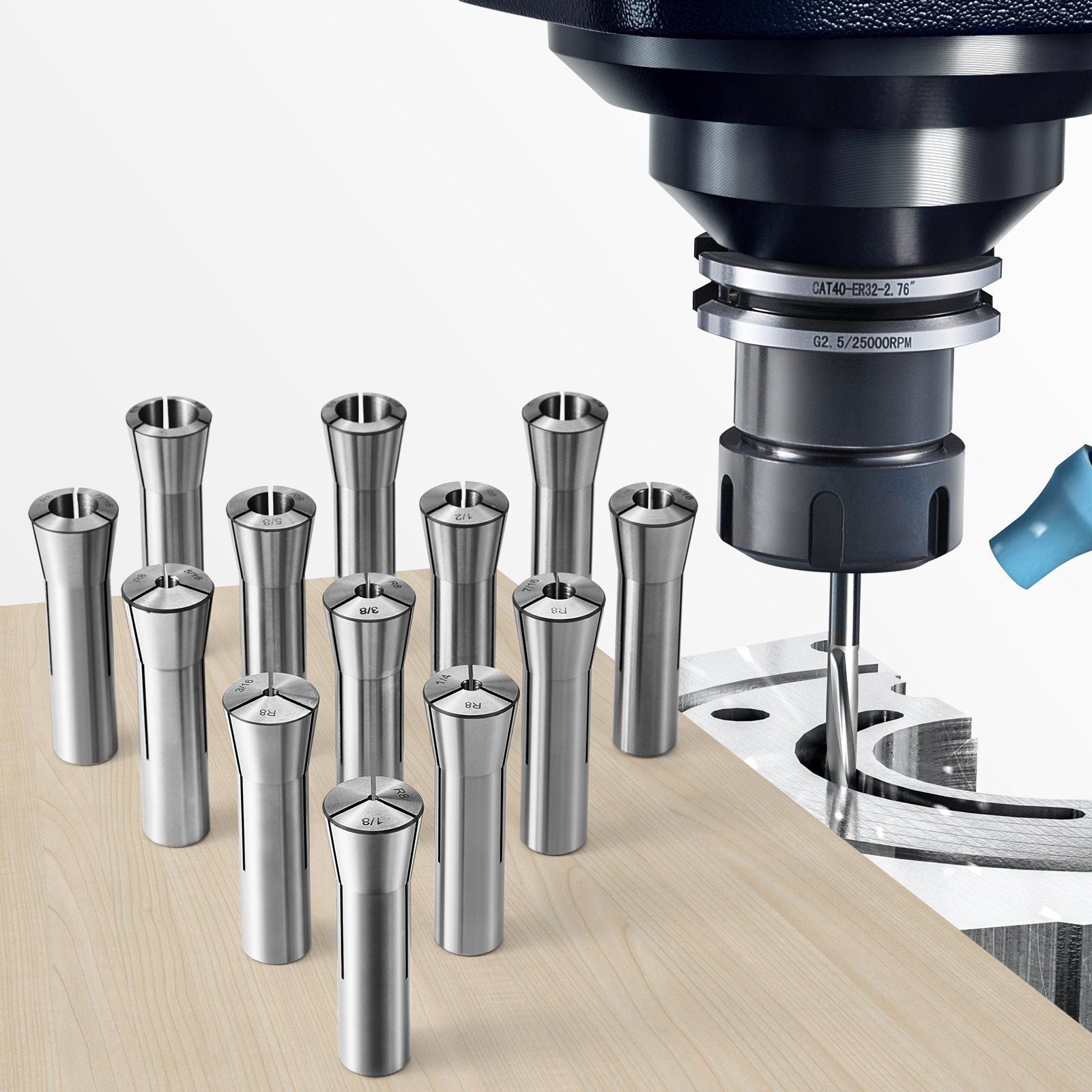

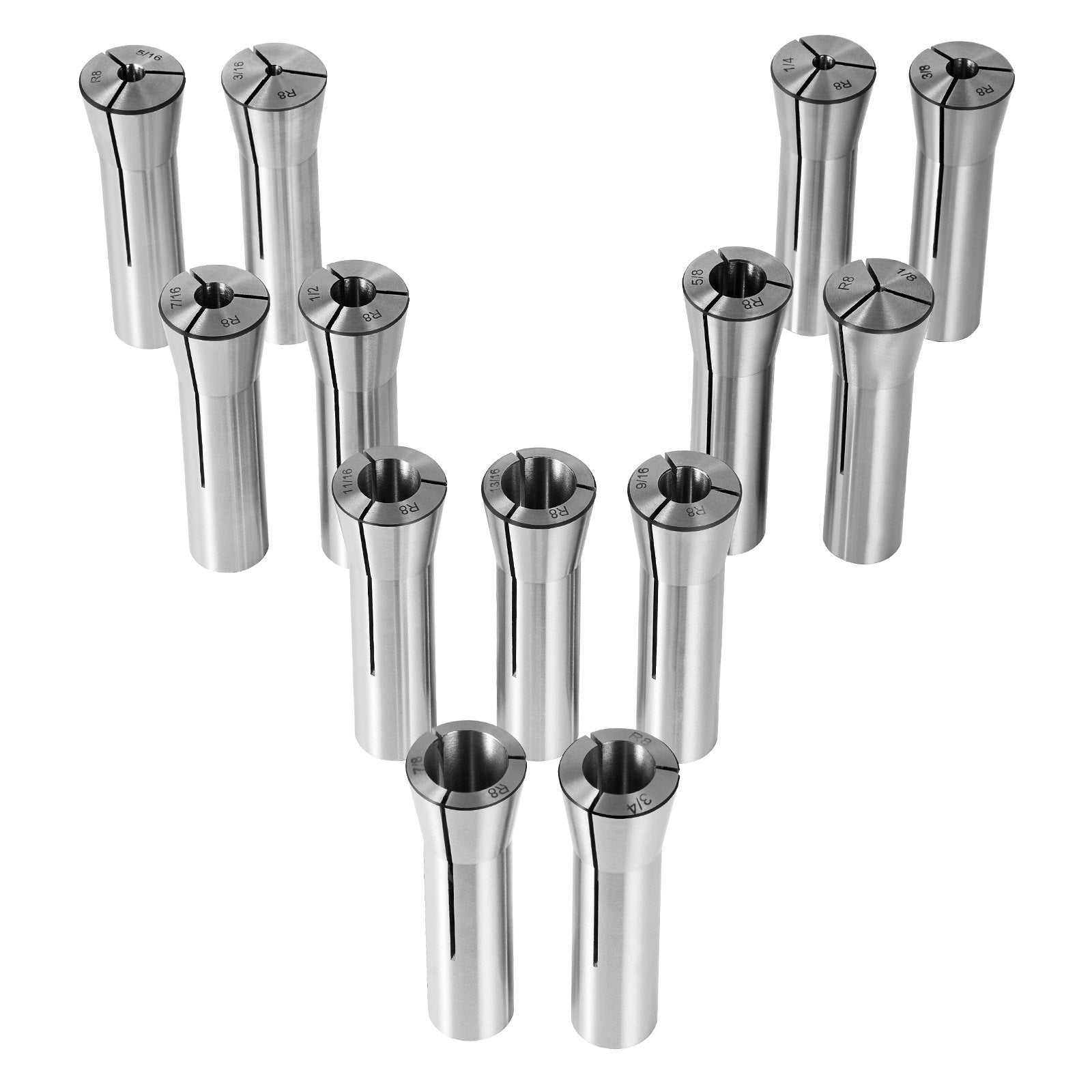

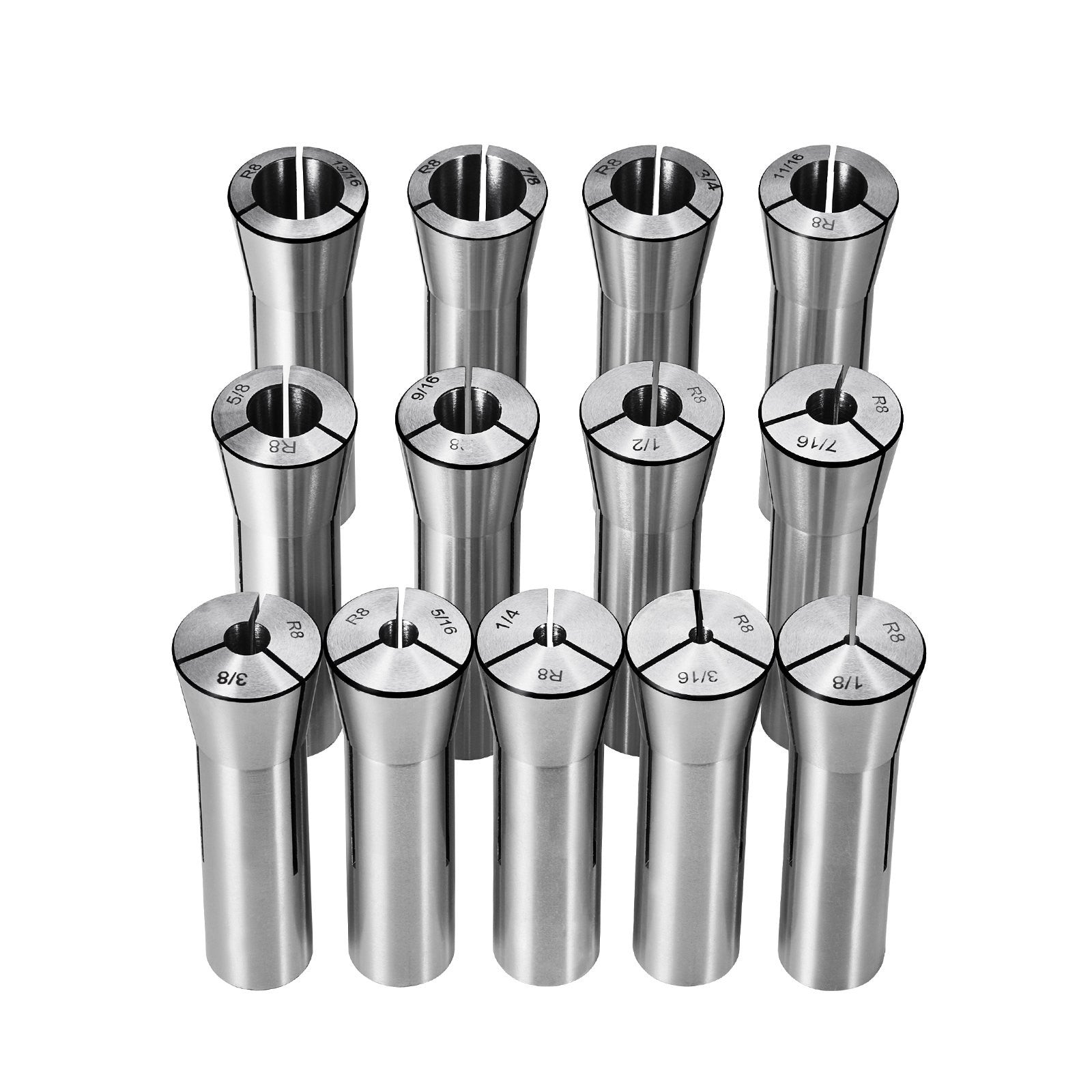

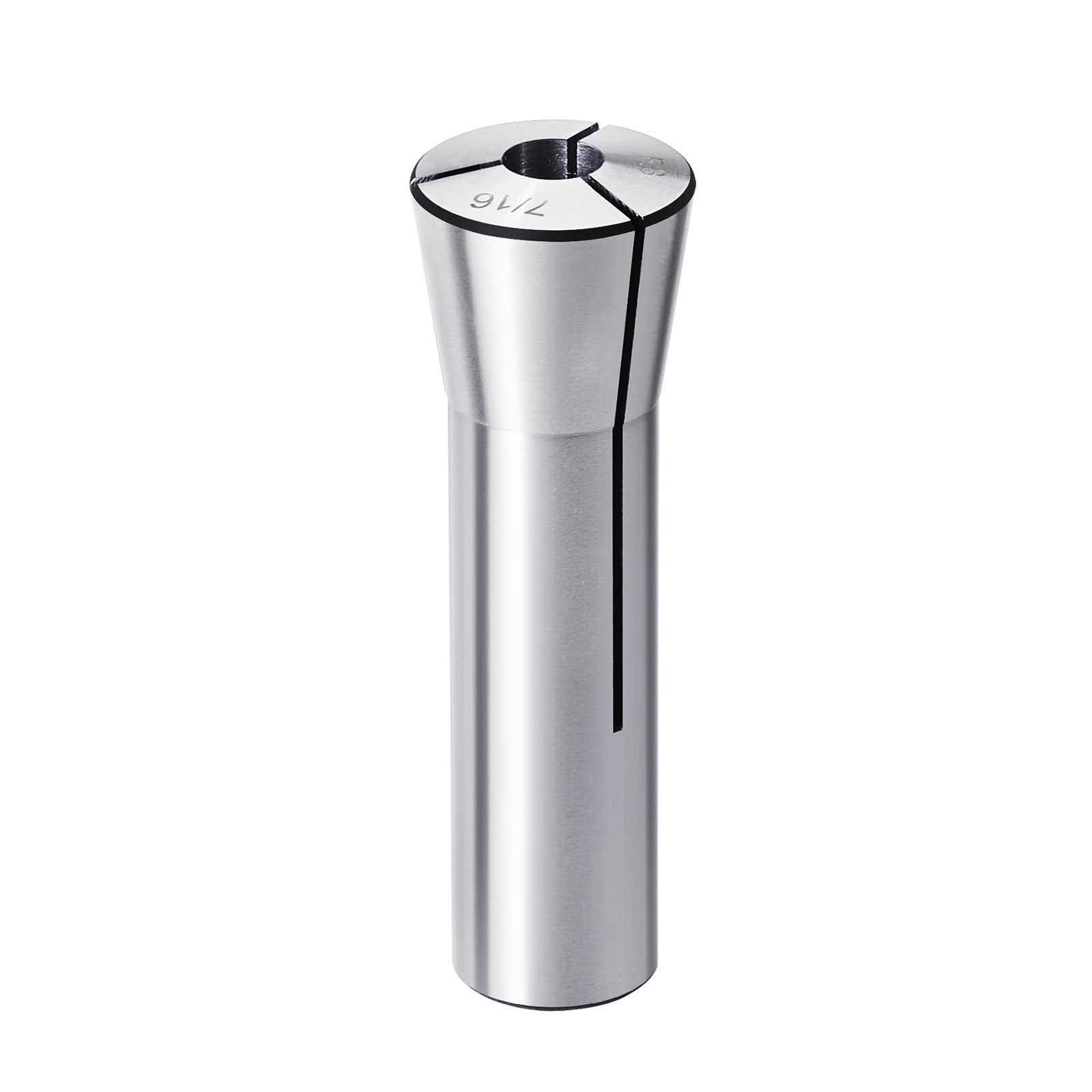

R8 Collet Set, 13-Piece 1/8–7/8 in, 0.0012 TIR

R8 Collet Set, 13-Piece 1/8–7/8 in, 0.0012 TIR

Product form
Item number: 11369092284743

R8 collet set delivers tight, repeatable tool holding for cleaner cuts and more accurate milling. This 13-piece precision collet chuck... Read more

Currently unavailable

€107,99  €97,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    TypeR8 collet chuck set (13-piece)
    Clamping range1/8"–7/8"
    Included sizes1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"
    Runout (TIR)0.0012" / 30 μm
    Drawbar thread7/16"-20 UNF
    Material45# steel, hardened and precision-ground
    Dimensions (each)φ1.3 x 4.1 in (φ32 x 103 mm)
    Net weight7.3 lb (3.3 kg)

    Description

    R8 collet set delivers tight, repeatable tool holding for cleaner cuts and more accurate milling. This 13-piece precision collet chuck set covers 1/8"–7/8" to match common end mill shanks, with 0.0012"/30 μm TIR for controlled runout on milling machines, drill presses, boring machines, and machining centers. Hardened, precision-ground 45# steel resists deformation under load, and each collet stores in a labeled box for fast size selection.

    When runout and tool slip cost time and scrap, a matched R8 collet set helps stabilize your setup and keep tolerances on track. Use it for precision parts, high-strength grinding, or general shop work across metalworking and manufacturing applications where consistent clamping matters. With a broad clamping range and clearly labeled storage, you can change sizes faster and get back to cutting. Grab yours today and keep your R8 spindle ready for the next job.

    Specifications
    • Delivers 0.0012"/30 μm TIR accuracy for consistent concentric clamping and smoother finishes
    • Fits 1/8"–7/8" shank sizes to cover keyway cutting, slotting, and general milling tasks
    • Includes internal thread design to tighten end mills securely and reduce slipping during runs
    • Resists wear with hardened, precision-ground 45# steel built for high-speed machining

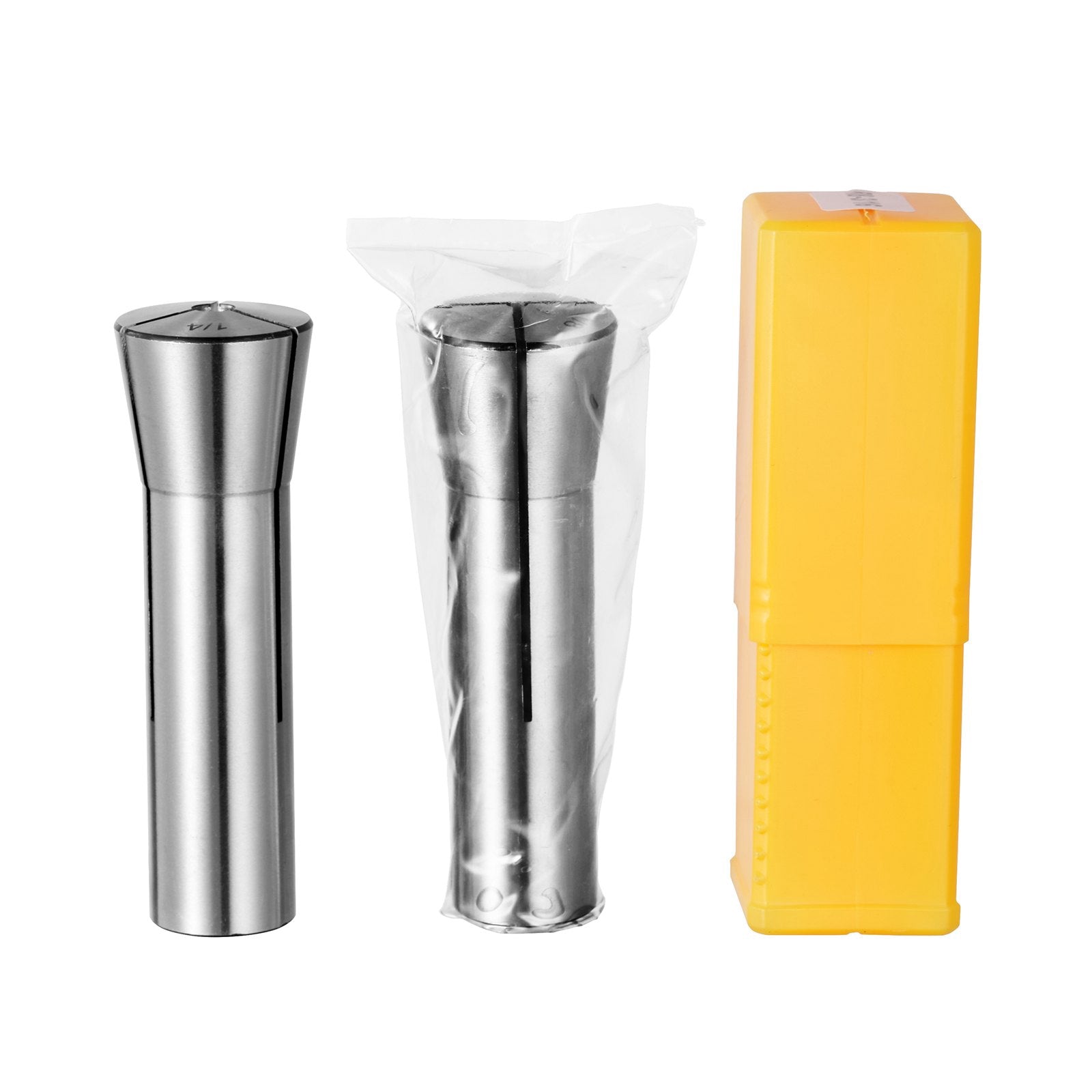

    • Organizes quickly with 13 labeled storage boxes to prevent mix-ups and save setup time
