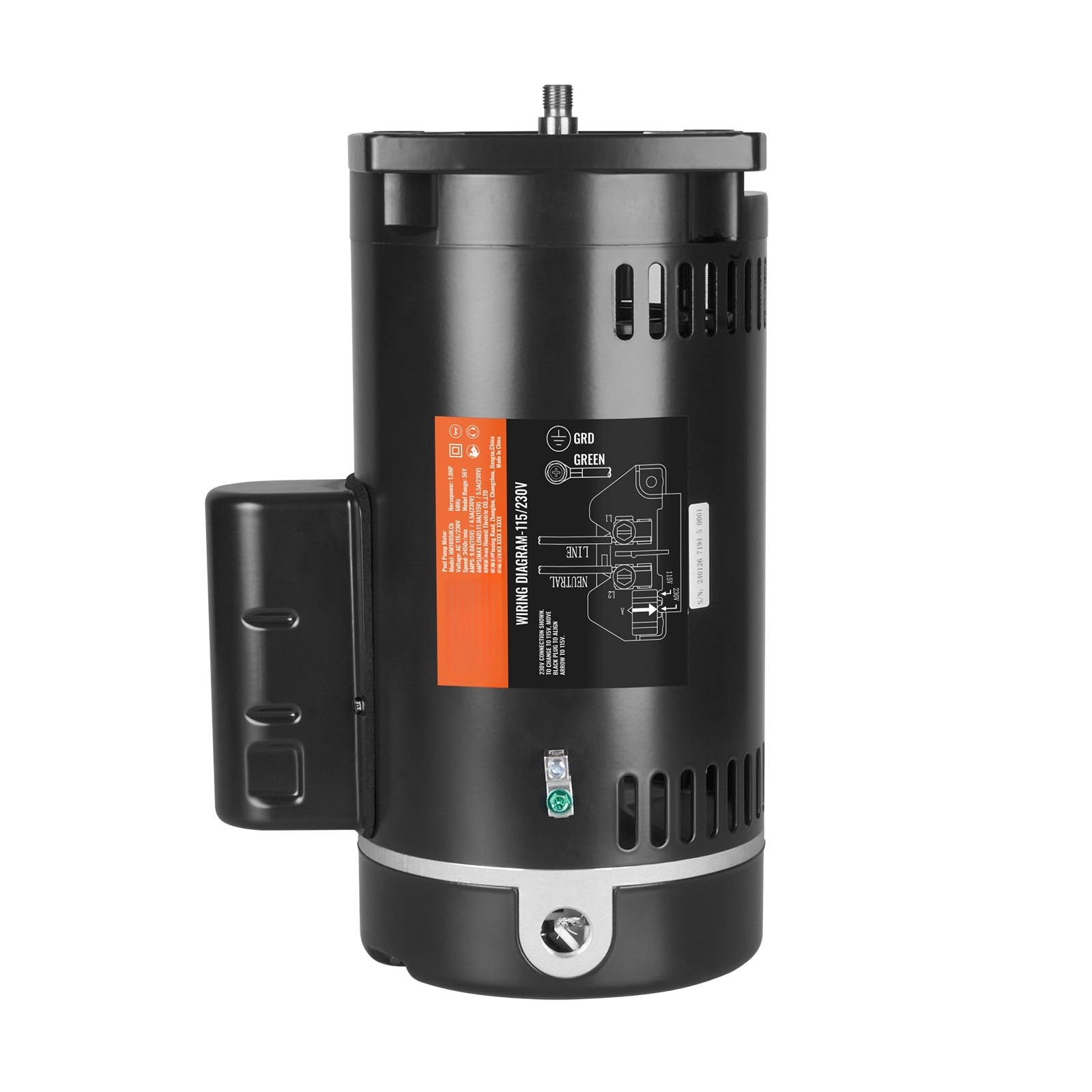

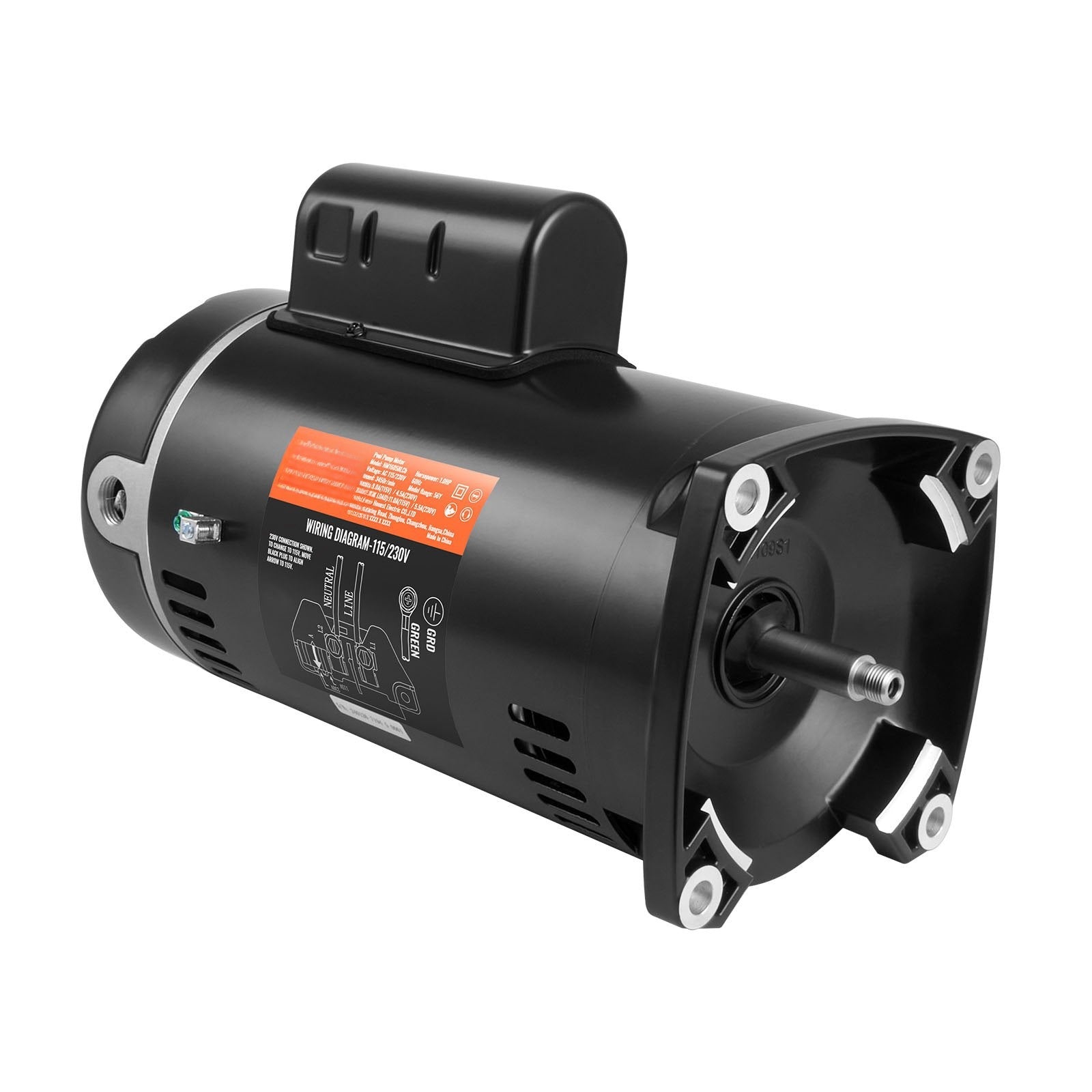

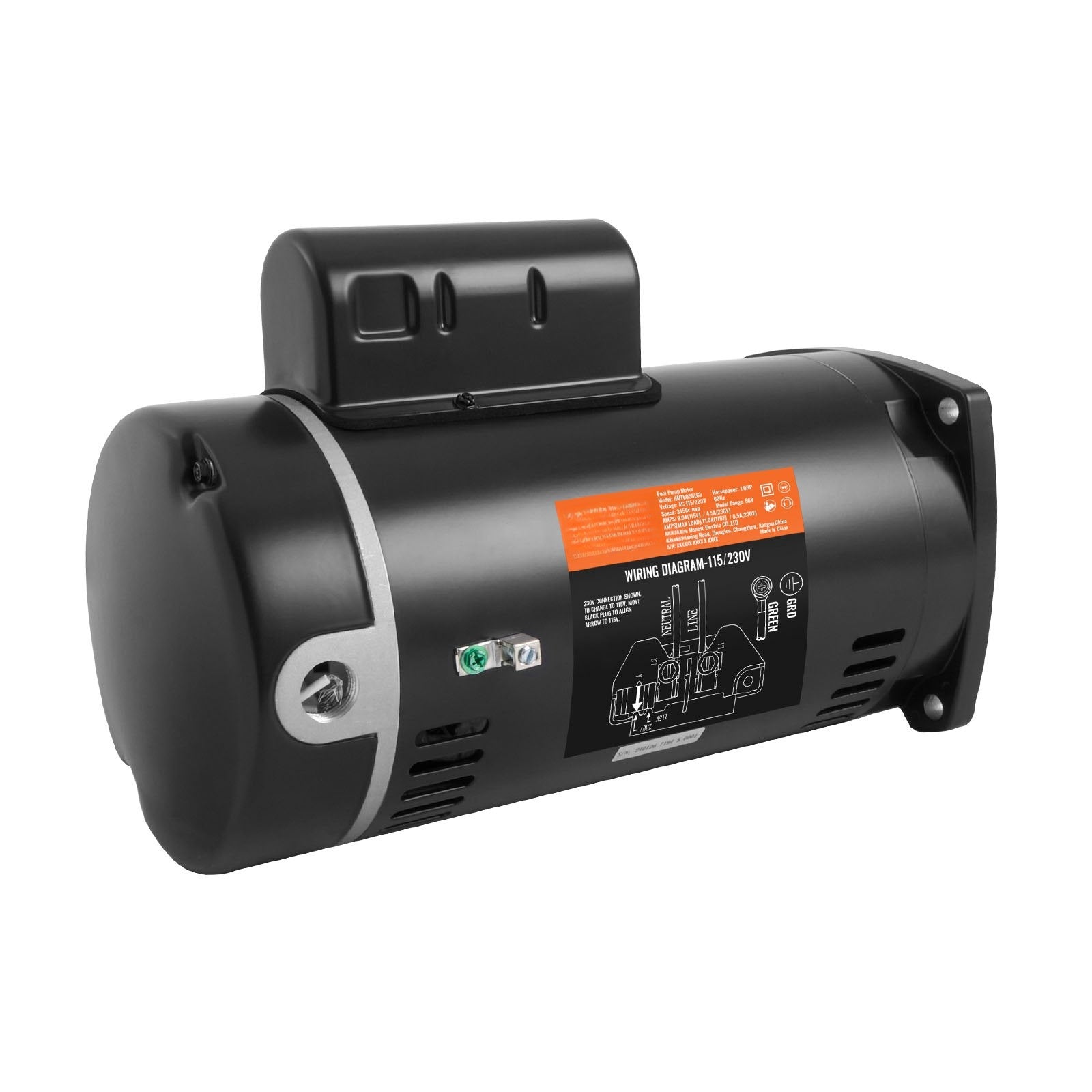

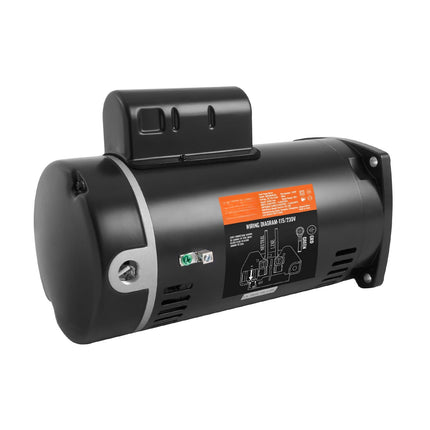

1 HP Pool Pump Motor, 56Y, 115/230V, 3450 RPM CCW

1 HP Pool Pump Motor, 56Y, 115/230V, 3450 RPM CCW

Product form
Item number: 11369154642247

1 HP pool pump motor replacement restores strong, steady water circulation to keep your pool cleaner with less downtime. Built... Read more

Currently unavailable

€303,99  €275,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Power1 HP
    Frame/Flange56Y square flange
    Voltage/FrequencyAC 115/230V, 60Hz
    Current9.0A (115V) / 4.5A (230V)
    Max Load Current11.0A (115V) / 5.5A (230V)
    Speed3450 RPM (no-load)
    Service Factor1.25
    RotationCCW
    Capacitor90 μF / 250V
    Noise Level≤ 70 dB
    Dimensions12.4 x 6.5 x 9.1 in (315 x 165 x 230 mm)
    Shaft extension0.9 in
    Output screw teeth1/2-20UNF-2A

    Description

    1 HP pool pump motor replacement restores strong, steady water circulation to keep your pool cleaner with less downtime. Built on a 56Y square flange frame, it runs at 3450 RPM for high-speed flow while staying at ≤70 dB for quieter operation. Dual-voltage 115V/230V wiring supports common pool setups, and the corrosion-resistant steel housing, ball bearings, and overload protection are designed for dependable daily use.

    When a worn motor causes weak flow, noisy starts, or frequent shutdowns, a correctly matched replacement brings your system back to stable operation. This motor is designed for easy mounting and connection using common thread and shaft standards, helping you get your pump running again with minimal hassle. Confirm your existing frame style, voltage, and rotation direction before ordering to ensure a proper match. Grab yours today and get your pool circulation back on schedule.

    Specifications
    • Delivers 3450 RPM performance for efficient circulation and consistent filtration.
    • Fits 56Y square flange applications for straightforward replacement on compatible pumps.
    • Supports 115V/230V dual voltage to match many residential and commercial pool systems.
    • Reduces noise with ≤70 dB operation for a more comfortable pool area.
    • Protects components with steel housing, ball bearings, and built-in overload protection.
