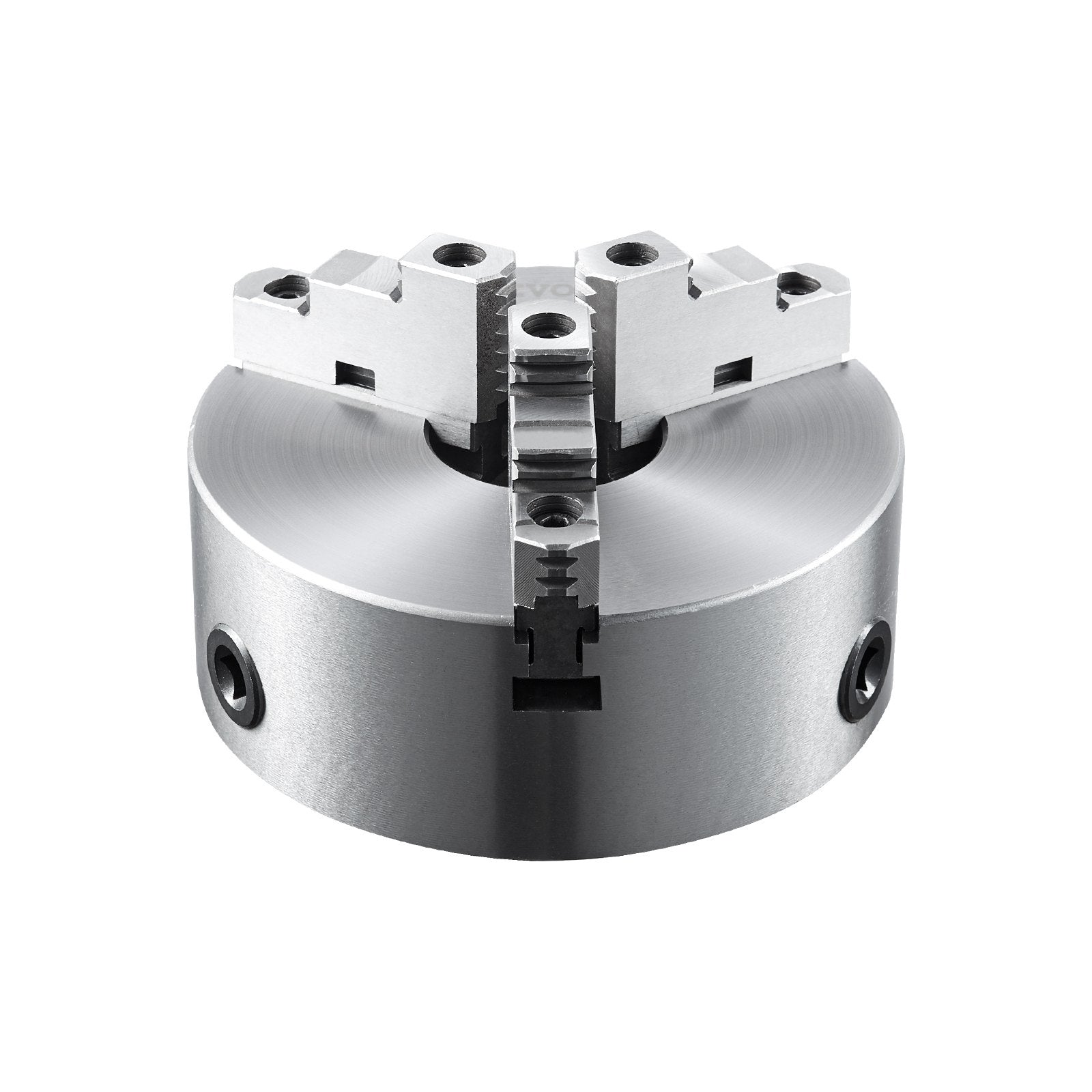

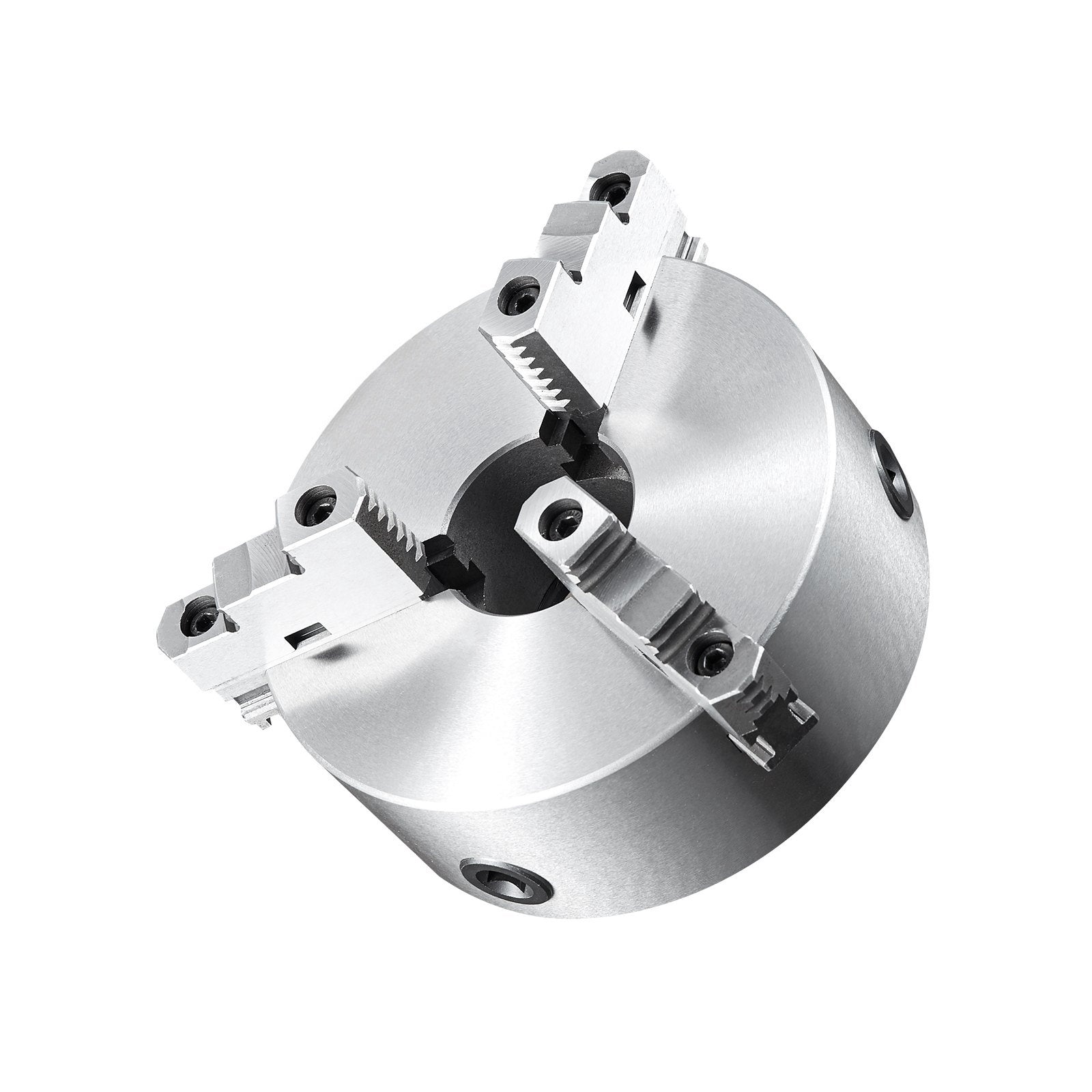

10-Inch 3-Jaw Self-Centering Lathe Chuck, 6–250 mm

10-Inch 3-Jaw Self-Centering Lathe Chuck, 6–250 mm

Product form
Item number: 11369059811655

10-inch self-centering lathe chuck delivers fast, accurate workholding so you can clamp round stock with less setup time and repeatable... Read more

Currently unavailable

€299,99  €271,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Chuck type3-jaw self-centering
    Chuck outside diameter10 in / 250 ± 5 mm
    Clamping range (internal)0.236–4.331 in / 6–110 mm
    Clamping range (external)3.15–9.84 in / 80–250 mm
    Boreφ80 mm
    Body materialHT300
    Jaw material/hardness20Cr, ≥53 HRC
    Scroll material/hardness40Cr, ≥45 HRC
    Bearing tolerance≤0.05 mm / 0.002 in
    Fixed thread3-M10
    Surface finish<Ra0.8, oil coated
    Product sizeφ252 × 190 mm
    Net weight49.1 lb / 22.3 kg

    Description

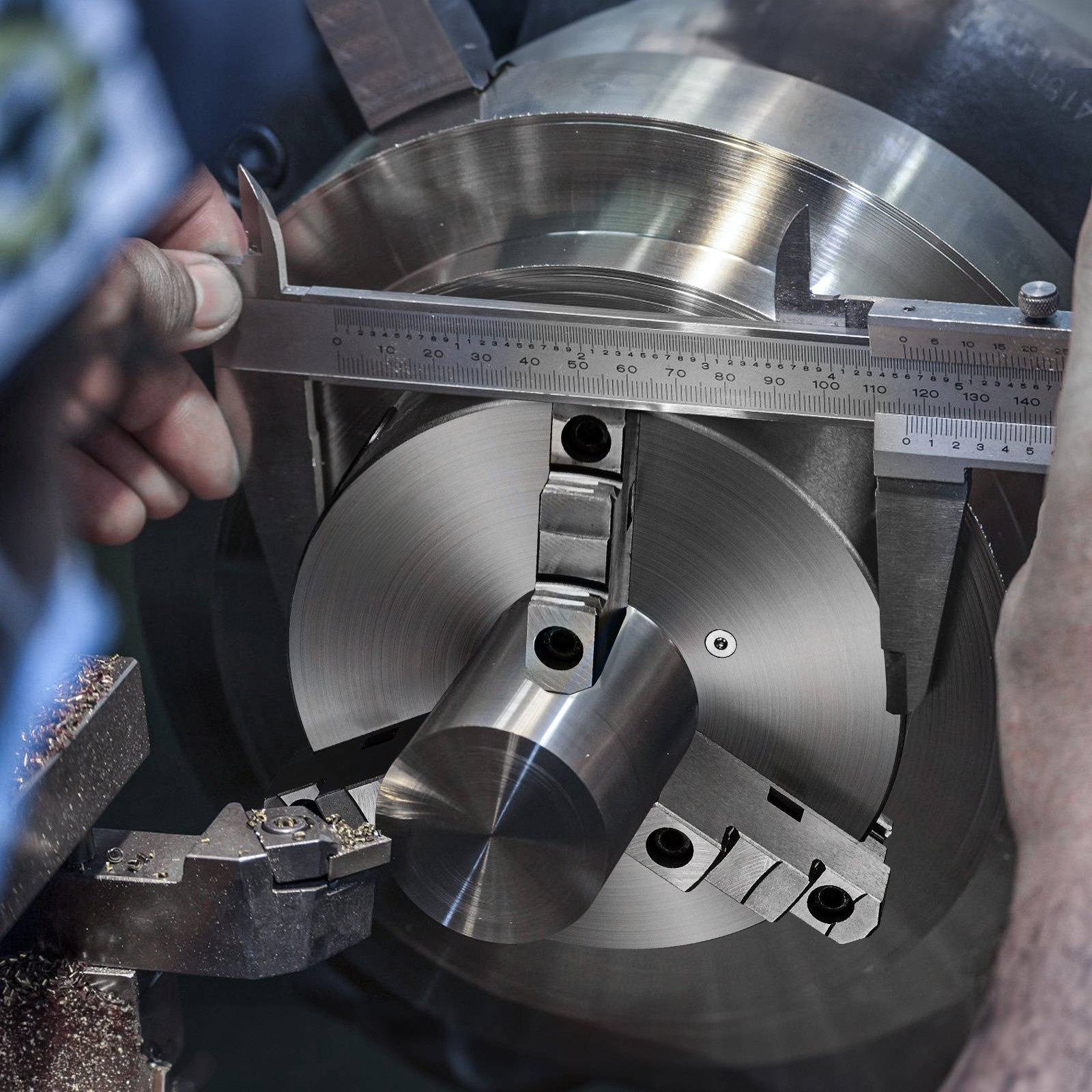

    10-inch self-centering lathe chuck delivers fast, accurate workholding so you can clamp round stock with less setup time and repeatable results. Built for lathes and machining setups, it combines a hardened steel scroll and jaws with a rigid body to reduce runout and keep parts secure during turning, milling, drilling, and prototyping. Dual-use jaws support both internal and external gripping for small to large workpieces across a wide clamping range.

    Designed for consistent concentricity and daily shop use, this 3-jaw chuck uses precision-machined gearing to keep jaws synchronized while maintaining a bearing tolerance of ≤0.05 mm. The oil-coated finish helps resist corrosion in demanding environments, and the rigid construction stabilizes workpieces during higher-load operations. Whether you’re machining small components or larger industrial parts, this chuck helps improve throughput and confidence at the spindle. Grab yours today and keep your setups moving.

    Specifications
    • Delivers self-centering clamping to reduce recalibration and speed up changeovers
    • Holds securely with hardened 20Cr jaws (≥53 HRC) and 40Cr scroll (≥45 HRC)
    • Supports internal and external jaw use for flexible gripping of varied part sizes

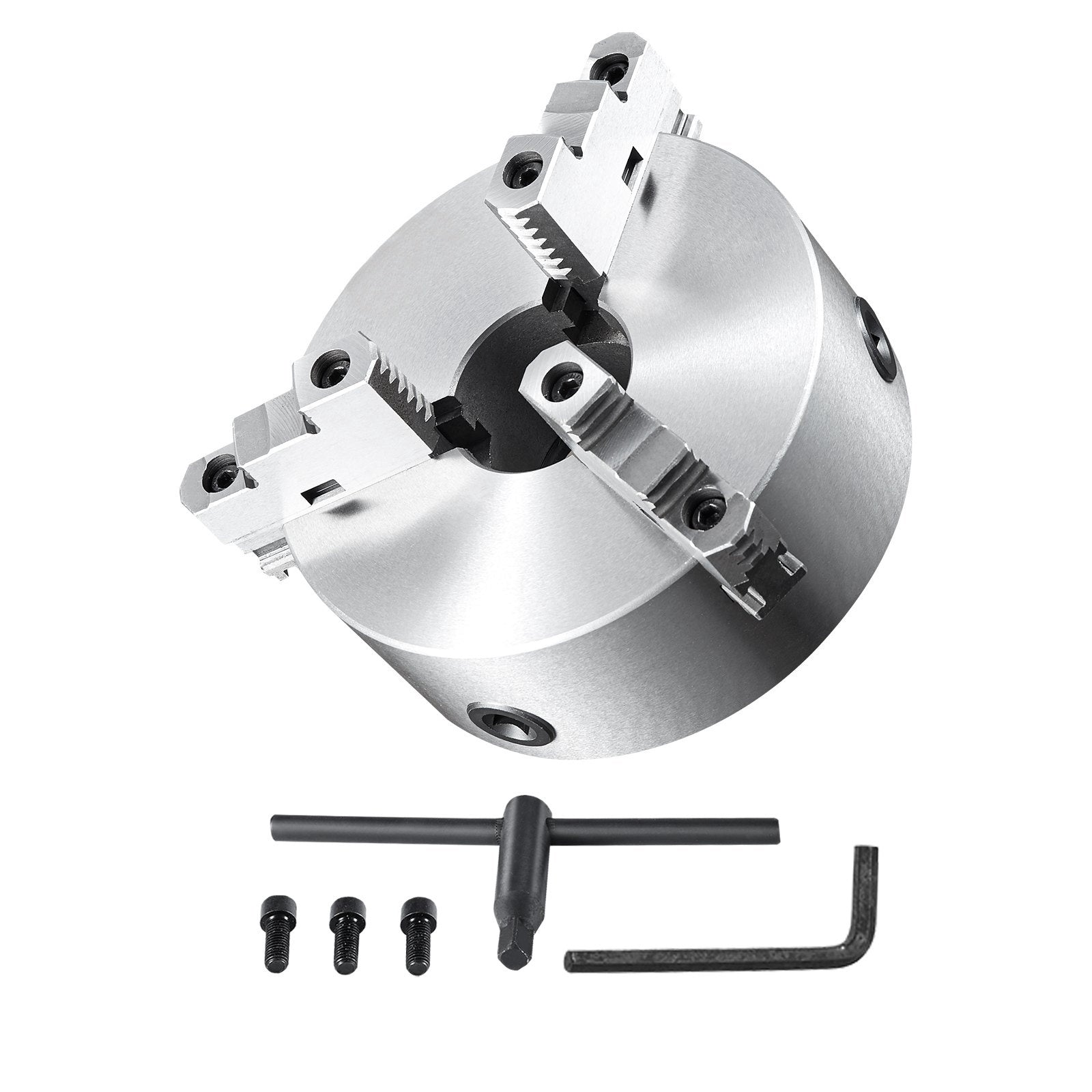

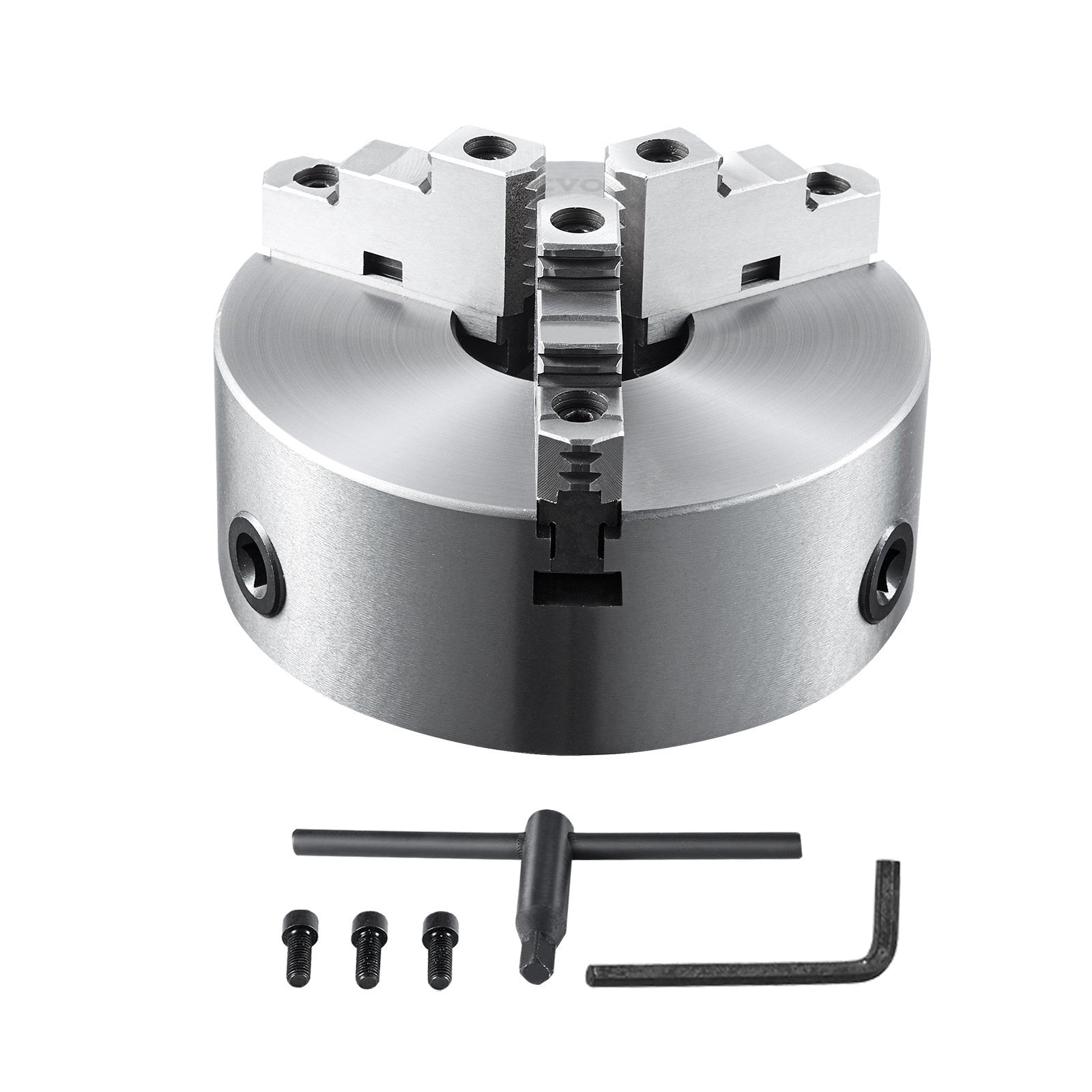

    • Includes T-key, fixing screws, and hexagon wrench for straightforward installation
    • Fits lathes plus milling, drilling, and machining center workholding applications
