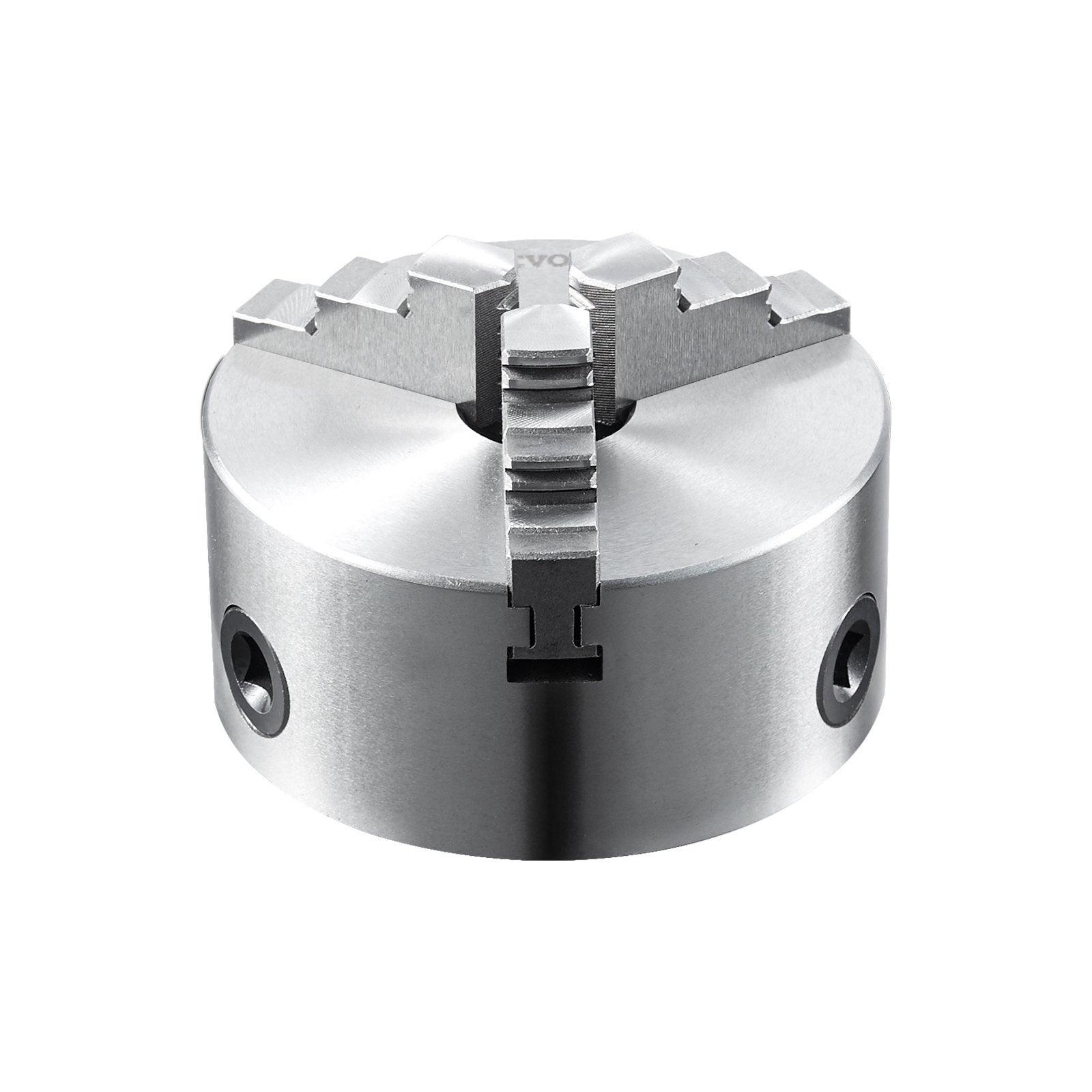

3-Jaw Self-Centering Lathe Chuck 5-Inch, Reversible Jaws
3-Jaw Self-Centering Lathe Chuck 5-Inch, Reversible Jaws
5 inch self-centering 3 jaw lathe chuck delivers fast, repeatable workholding so you can clamp round stock accurately with minimal... Read more
€163,99 €148,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Chuck type | 3-jaw self-centering |
|---|---|
| Chuck outside diameter | 5 in / 125 ± 5 mm |
| Clamping range (internal jaws) | 2.5–40 mm / 0.098–1.57 in |
| Clamping range (external jaws) | 45–125 mm / 1.78–5 in |
| Bore | φ30 mm |
| Materials | HT300 body; 20Cr jaws; 40Cr scroll |
| Hardness | jaws ≥53 HRC; scroll ≥45 HRC |
| Bearing tolerance | ≤0.05 mm / 0.002 in |
| Surface finish | Ra ≤0.8, oil coated |
| Fixed thread | 3-M8 |
| Product size | φ125 × 135 mm |
| Net weight | 10.8 lb / 4.9 kg |
