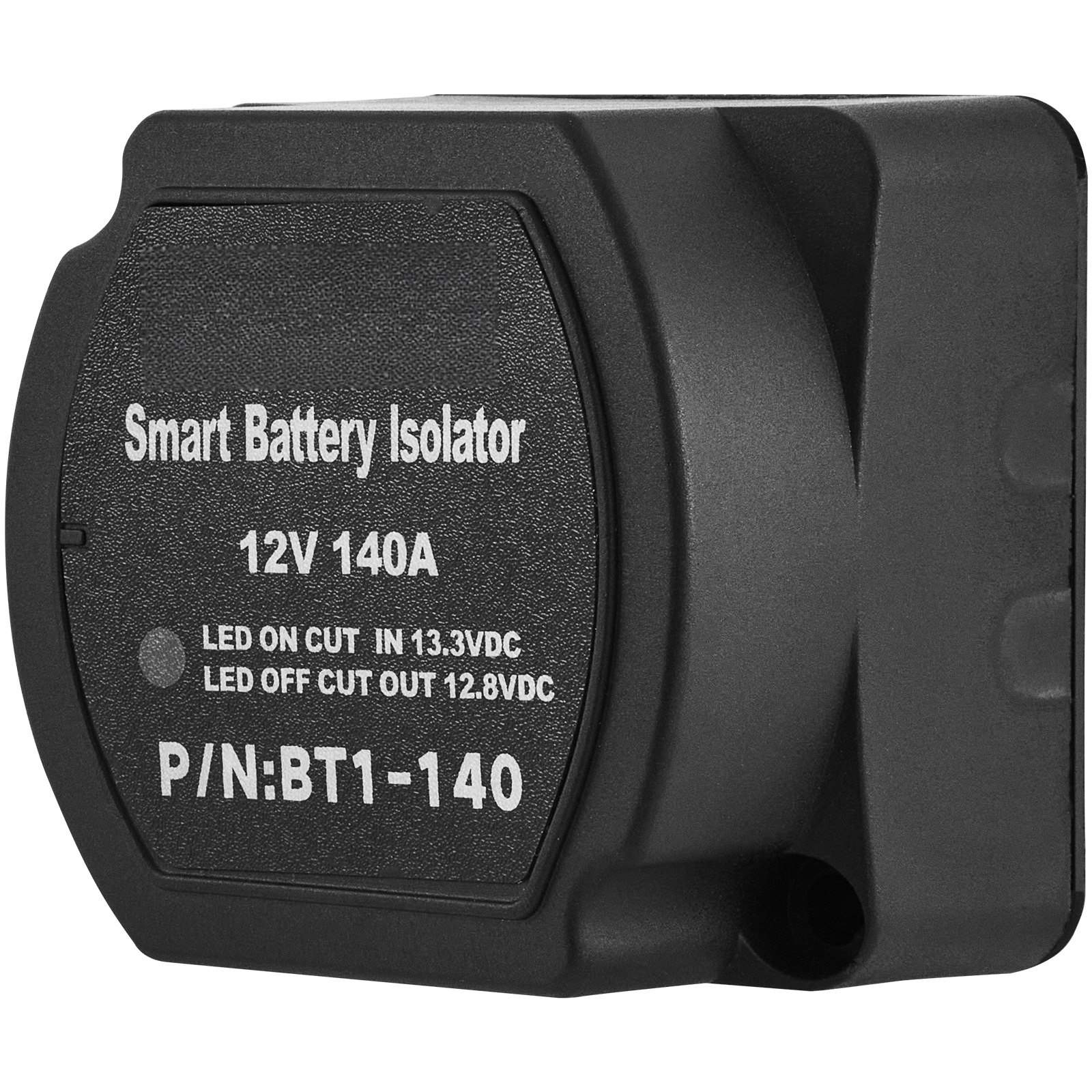

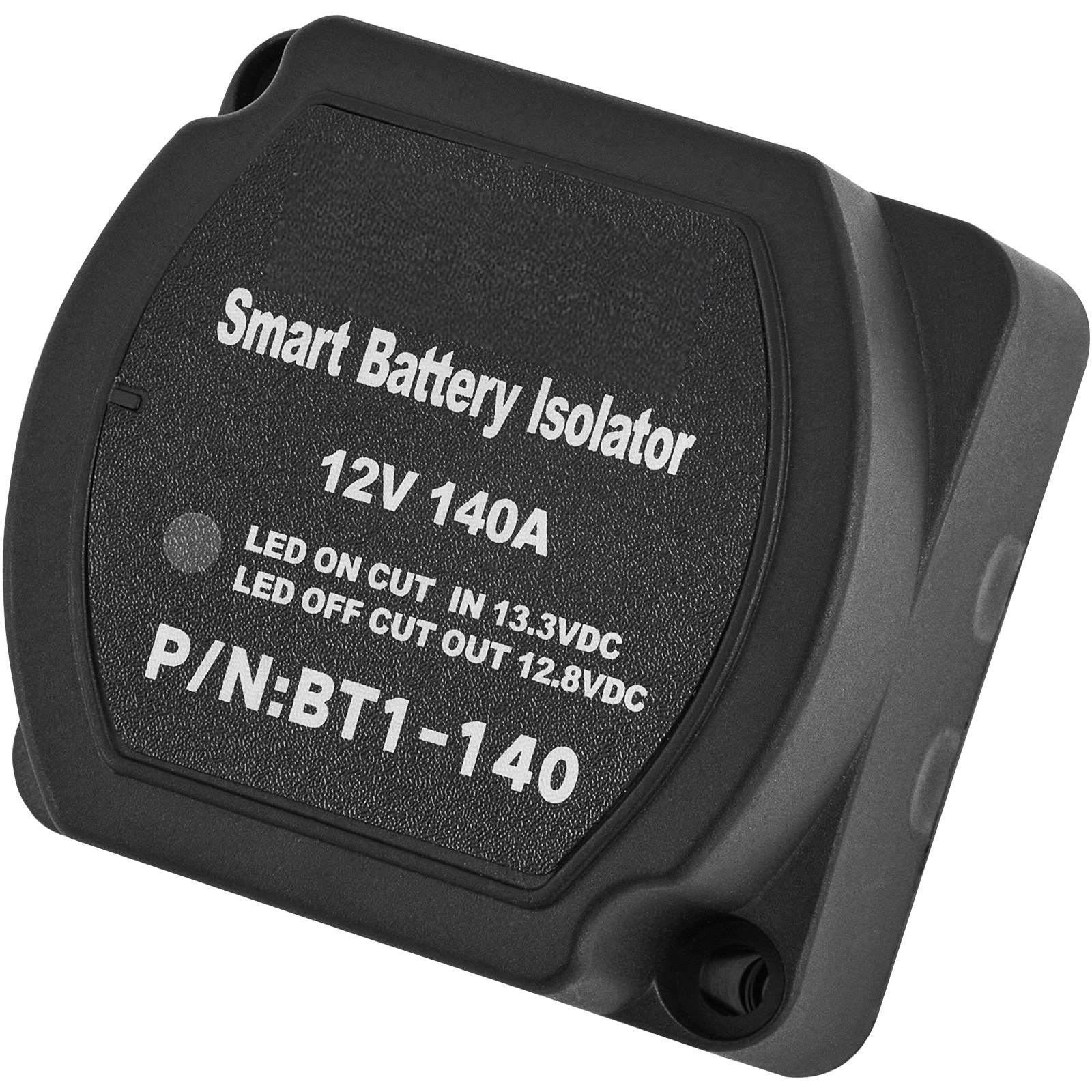

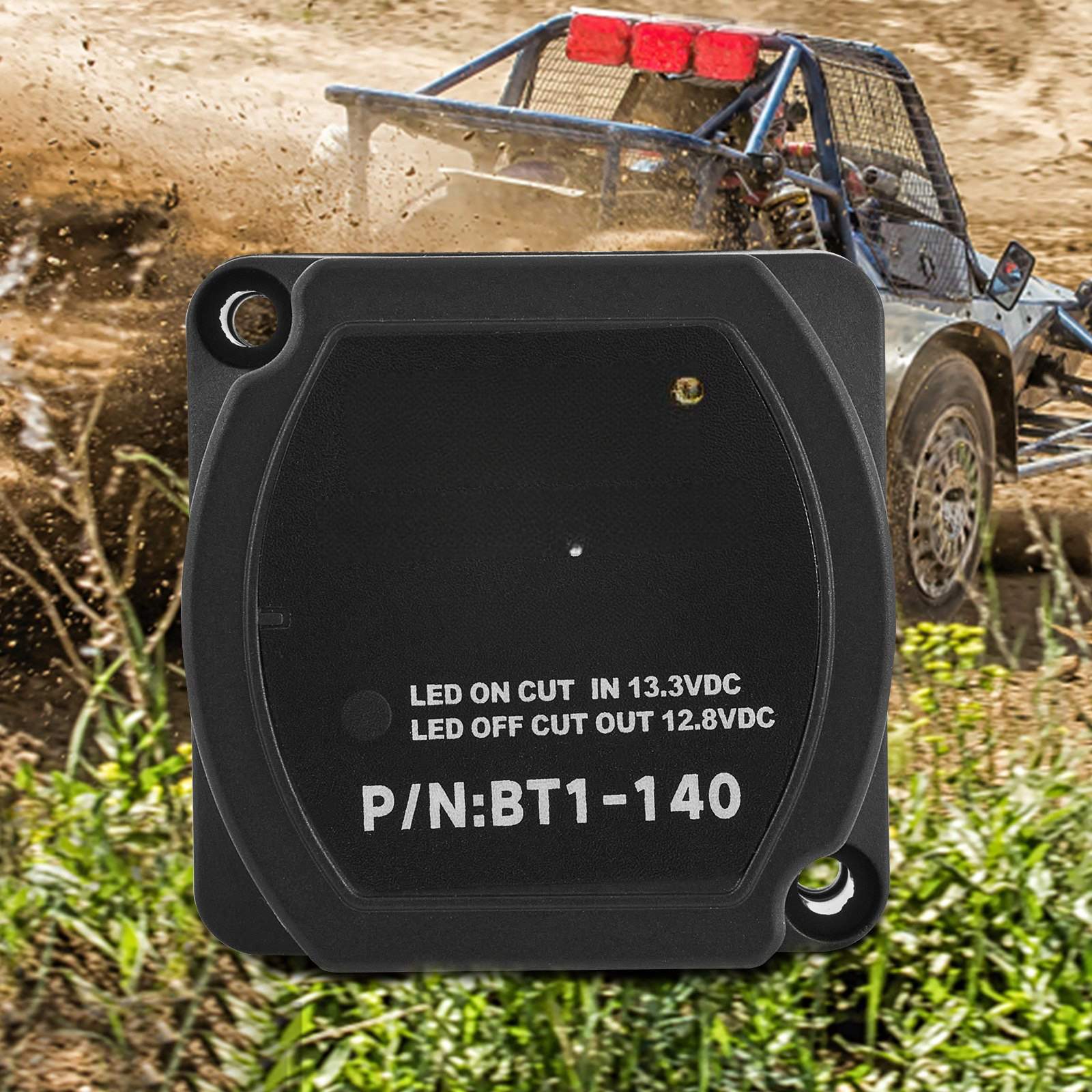

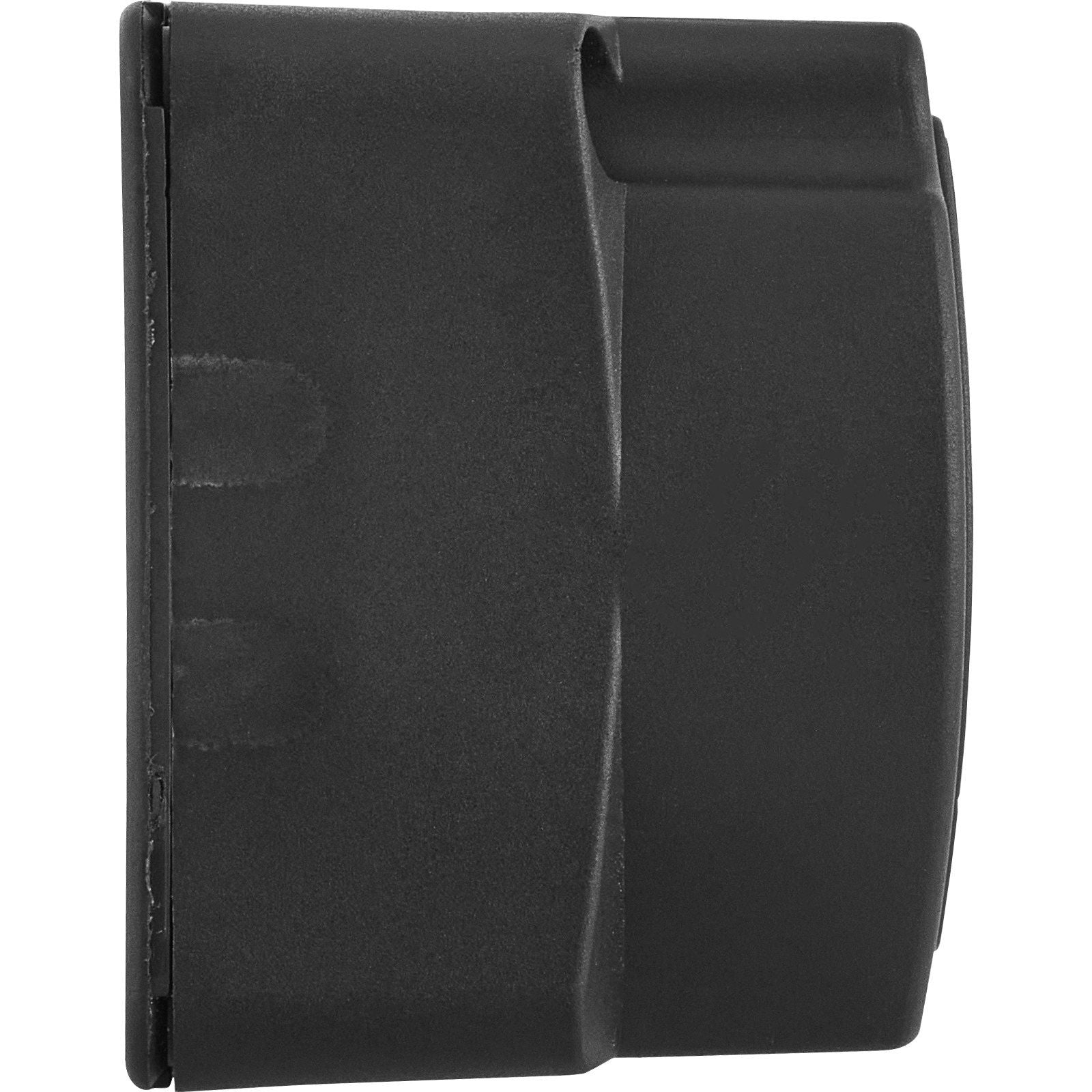

Dual Battery Isolator Kit 12V 140A VSR, 6m Cable

Dual Battery Isolator Kit 12V 140A VSR, 6m Cable

Product form
Item number: 11368707162439

Dual battery isolator kit keeps your starter battery protected while charging an auxiliary battery automatically for reliable power on the... Read more

Currently unavailable

€100,99  €90,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    System voltage12V DC
    Continuous current140A; Intermittent current: 160A
    Cut-in voltage13.3V; Cut-out voltage: 12.8V
    Delay time5 seconds; Disengage delay: approx. 5–10 seconds
    Current draw (standby)8mA; Current draw (charging): 280mA
    IP ratingIP65
    Operating temperature-30 to 105°C (-22 to 221°F)
    MaterialNylon plastic
    Power studsM6 stainless steel
    Relay size2.66 x 2.11 x 2.66 in (6.76 x 5.36 x 6.76 cm)
    Net weight4.14 lb (1.88 kg)
    Cable length6 m
    Compatibility noteNot suitable for lithium batteries

    Description

    Dual battery isolator kit keeps your starter battery protected while charging an auxiliary battery automatically for reliable power on the road or water. This 12V split charge relay uses a voltage sensitive relay (VSR) to connect at 13.3V and isolate at 12.8V, so accessories run from the leisure battery without risking a no-start. Built for RV, camper van, 4x4, marine, and workshop installs with a compact, sealed design.

    Set up a dependable dual-battery system for fridges, lights, winches, inverters, or onboard electronics without constantly switching cables. The voltage-sensing logic connects only when charging voltage is present, then separates batteries after shutdown with a short delay to avoid nuisance cycling. Designed for cars, trucks, caravans, RVs, boats, yachts, ATVs/UTVs, and off-road builds where wiring needs to stay organized and protected. Grab yours today and finish your split-charge install with confidence.

    Specifications
    • Delivers automatic charge sharing with 140A continuous / 160A intermittent capacity

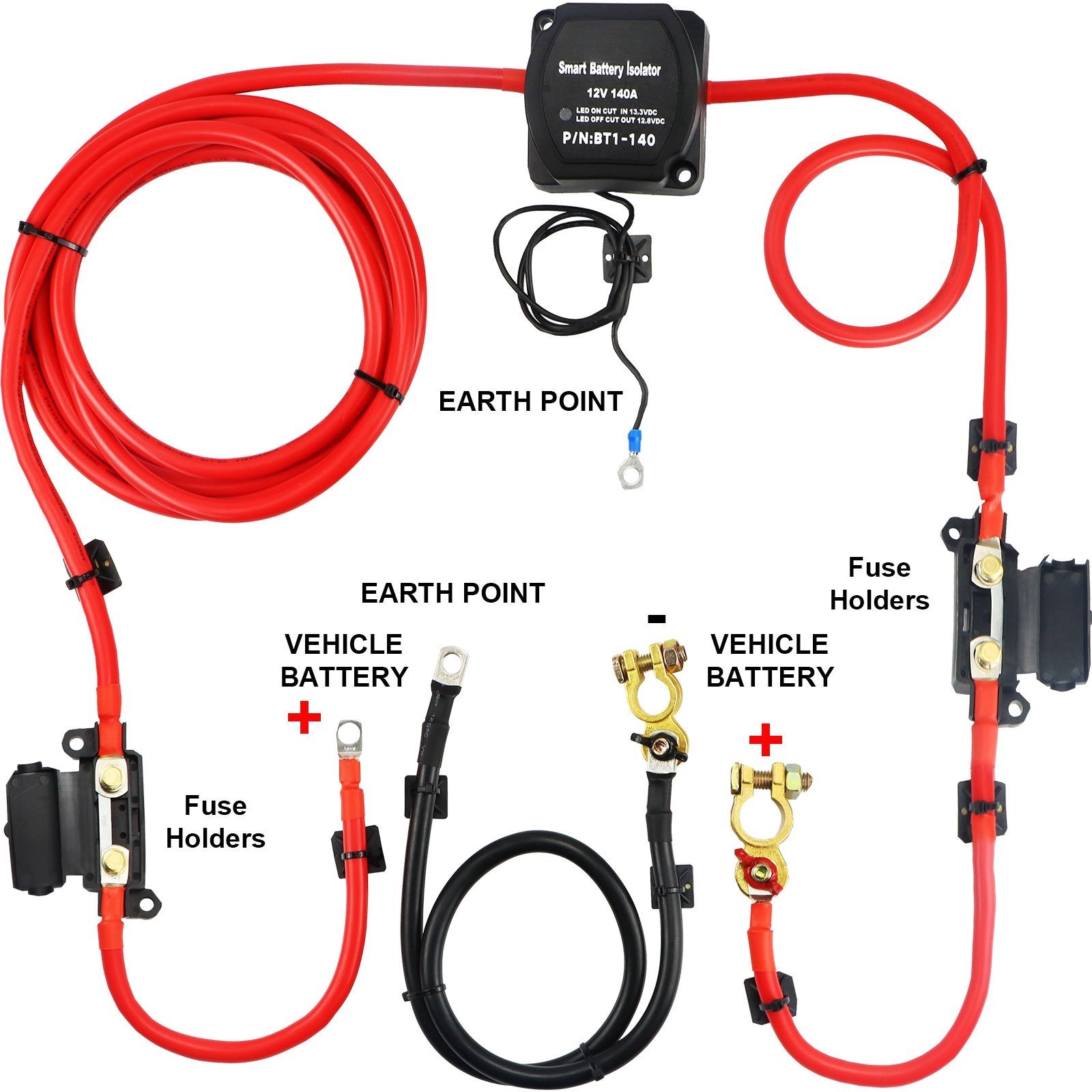

    • Includes a 6m heavy-duty battery cable set and install accessories for a complete wiring run
    • Protects with IP65 sealing plus shock/dust resistance for wet, dusty, high-vibration use
    • Fits tight bays with a compact VSR housing and M6 stainless power studs
    • Prevents back-drain by isolating batteries when the engine is off (not for lithium batteries)
