HVAC Refrigerant Vacuum Pump, 9 CFM, 1HP, Dual Stage

HVAC Refrigerant Vacuum Pump, 9 CFM, 1HP, Dual Stage

Product form
Item number: 11368427422023

HVAC vacuum pump delivers fast, deep evacuation to remove air and moisture for cleaner, more stable AC and refrigeration service.... Read more

Currently unavailable

€336,99  €305,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    TypeDual-stage rotary vane vacuum pump
    Flow rate9.0 CFM (approx. 227–255 L/min)
    Motor power1 HP (746 W)
    Ultimate vacuumup to 5 Pa (0.05 mbar); factory micron rating: 15 microns
    Voltage/Frequency220V / 50Hz
    Inlet ports1/4" SAE & 3/8" SAE
    Oil capacity300 ml
    Rotating speed1720 rpm
    Working temperature-5°C to 60°C
    Power cable length181 cm

    Description

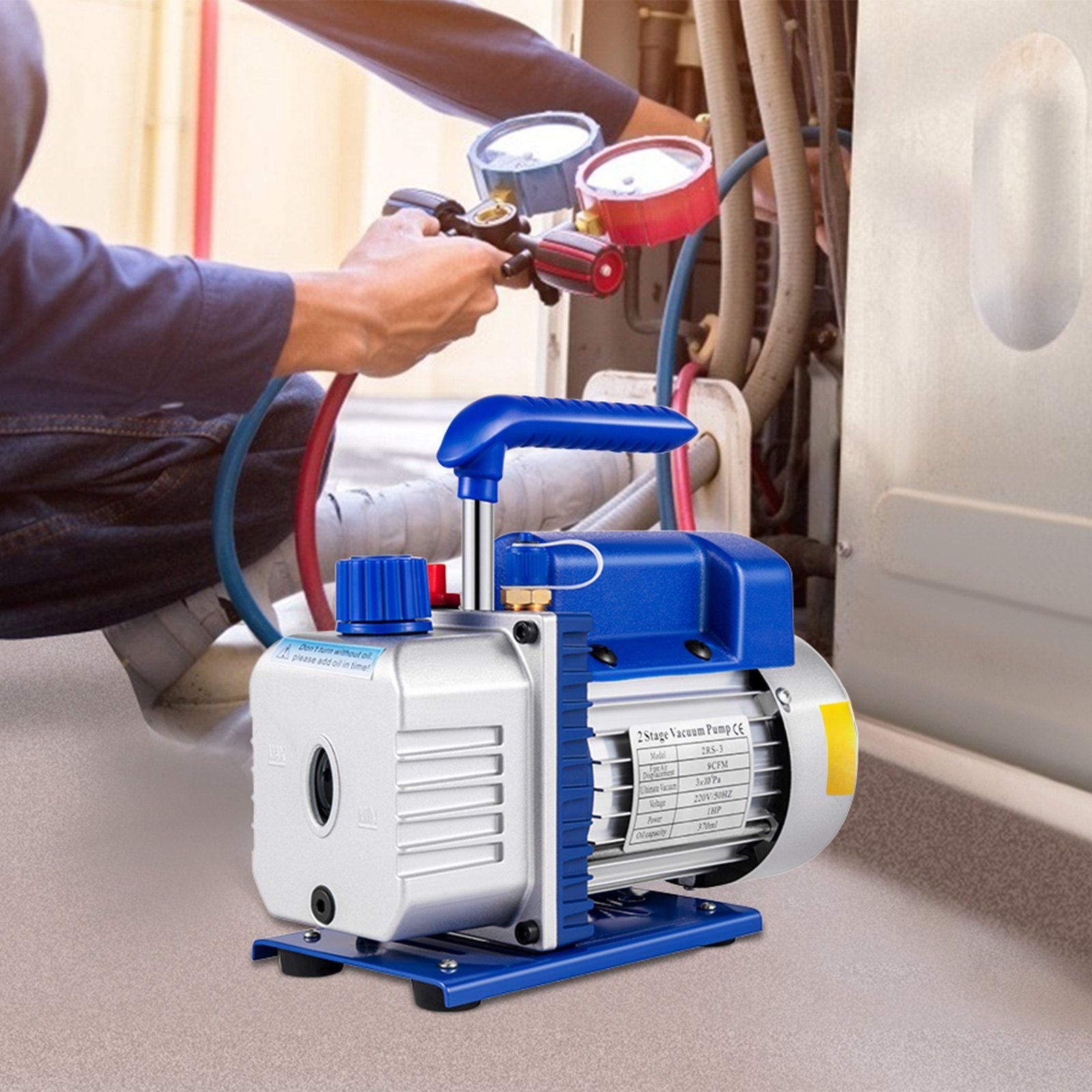

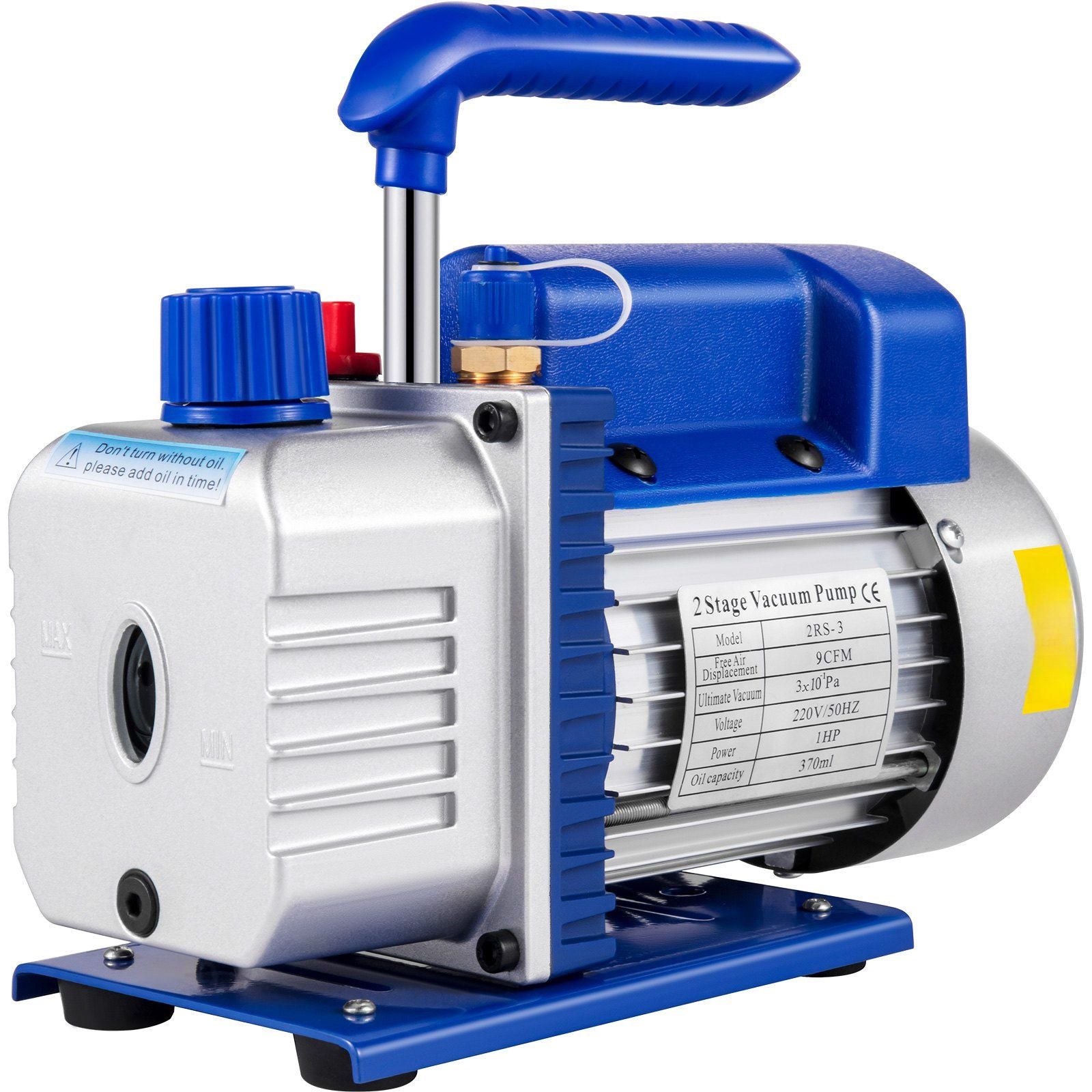

    HVAC vacuum pump delivers fast, deep evacuation to remove air and moisture for cleaner, more stable AC and refrigeration service. Dual-stage design pulls down quickly while the oil backflow prevention helps protect hoses and system components from contamination. Built for regular shop use with an aluminum alloy housing, copper motor, and thermal protection for safer long runs. Easy oil-level checks and a portable handle keep setup and maintenance straightforward.

    Designed for technicians and serious DIY users, this refrigerant vacuum pump supports routine HVAC evacuation, vacuum packaging, refrigeration maintenance, and general workshop degassing tasks. The front-access oil fill, fast drain, and controlled exhaust make servicing less messy, while the shock-resistant base helps keep the pump stable during operation. Keep it ready in your garage or service kit for when a system needs a proper vacuum before charging or sealing. Grab yours today and get consistent pull-down performance on every job.

    Specifications
    • Delivers 9 CFM flow to evacuate AC, refrigerator, and automotive systems faster
    • Prevents oil backflow to reduce contamination risk in lines, manifolds, and chambers

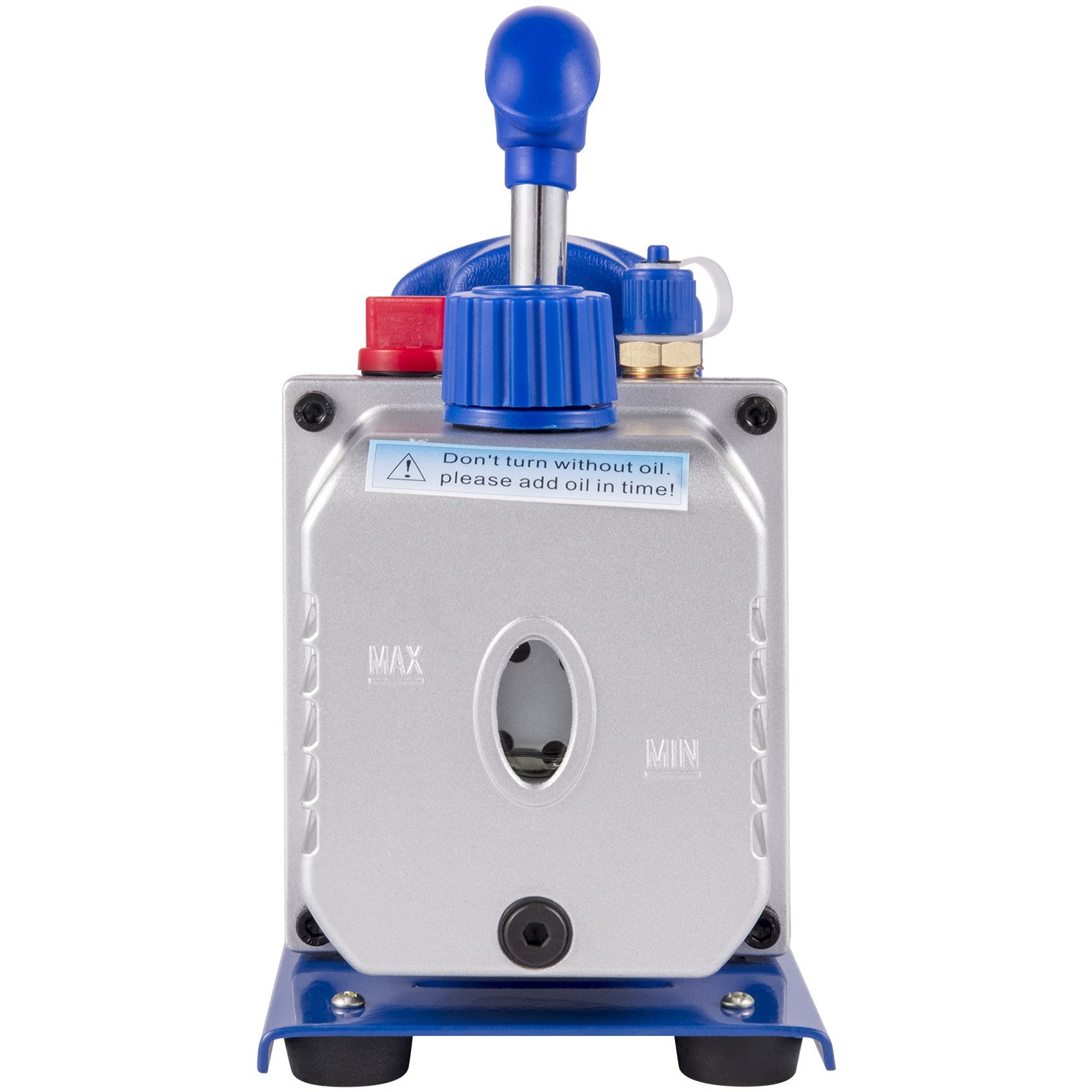

    • Monitors oil at a glance with the viewing window to help avoid low-oil operation

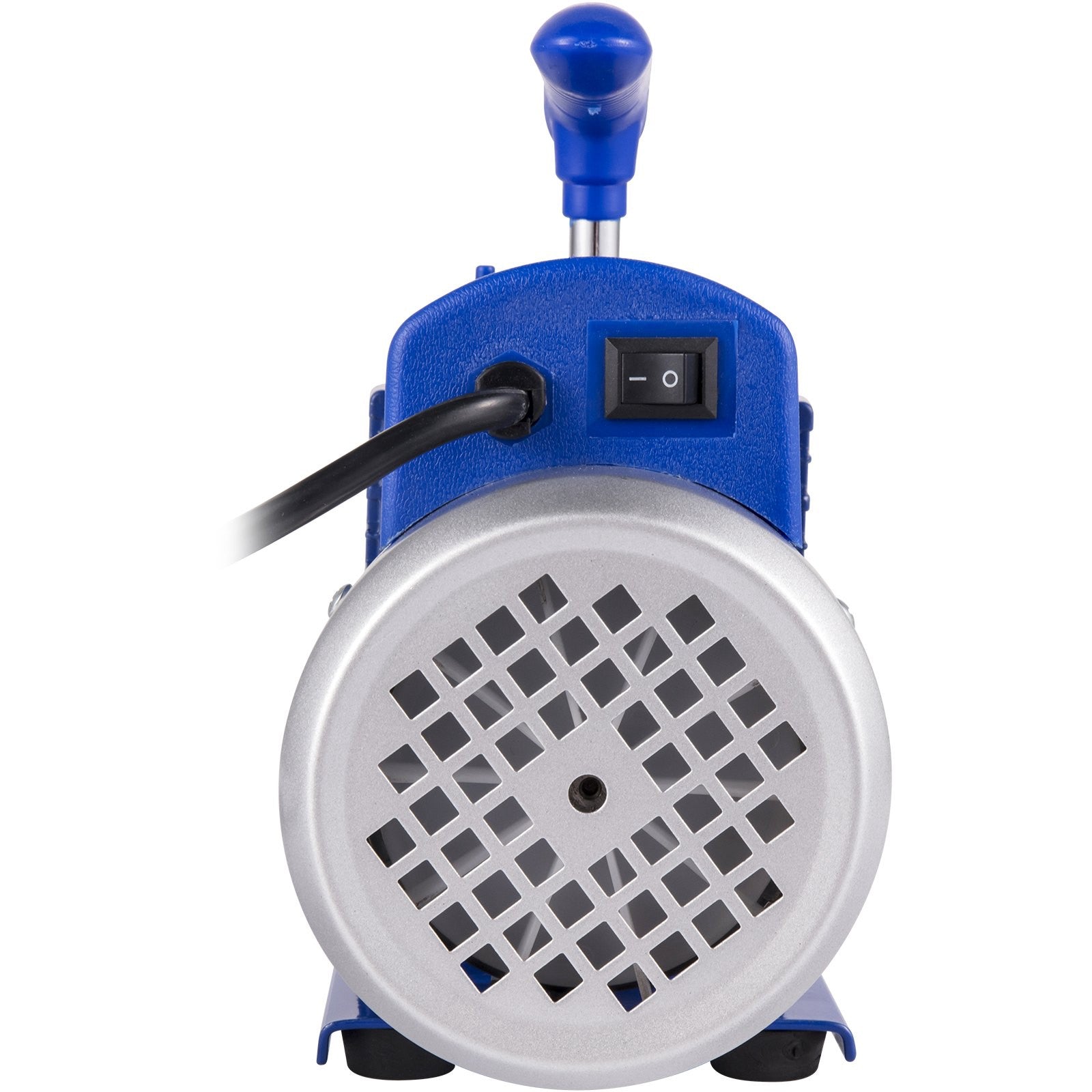

    • Protects the motor with built-in thermal protection and efficient heat dissipation
    • Fits multiple setups with 1/4" SAE and 3/8" SAE inlet ports plus carry handle
