Type 2 To Type 2 EV Charging Cable, 32A 22kW, 5m
Type 2 To Type 2 EV Charging Cable, 32A 22kW, 5m
Type 2 to Type 2 EV charging cable extends your reach with a 5 m / 16.4 ft length for... Read more
€234,99 €212,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Connector type | Type 2 to Type 2 (IEC 62196-2) |
|---|---|
| Max current | 32A |
| Max power | 22 kW |
| Input voltage / frequency | AC 380V, 50 Hz |
| Phase | Three-phase |
| IP rating | IP66 |
| Cable length | 5 m / 16.4 ft |
| Cable material | TPU; pure copper conductors |
| Wire gauge | 5 × 6 mm² + 1 × 0.75 mm² |
| Operating temperature | -30°C to 55°C (-22°F to 131°F) |
| Contact material | copper alloy, silver plated |
| Casing material | flame-retardant thermoplastic (PC) |
| Mechanical life | 10,000+ plug/unplug cycles |
| Net weight | 3.3 kg / 7.27 lb |

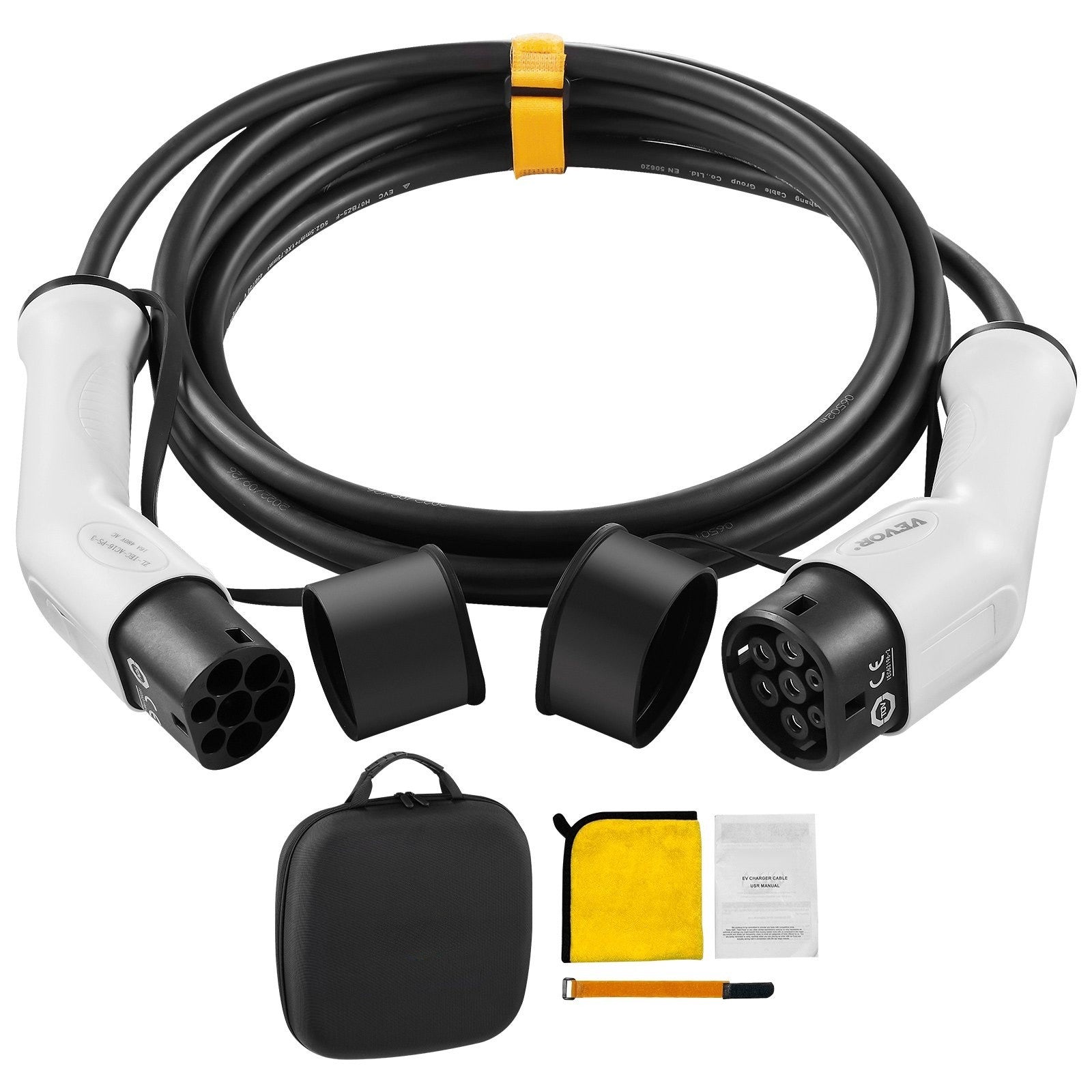

| In the box | charging cable, carry bag, cable ties |
